2021.09.24 수업일지(안드로이드 개발 기초, SQLite)

by 주성씨 2021. 9. 24.

- 안드로이드 개발 기초

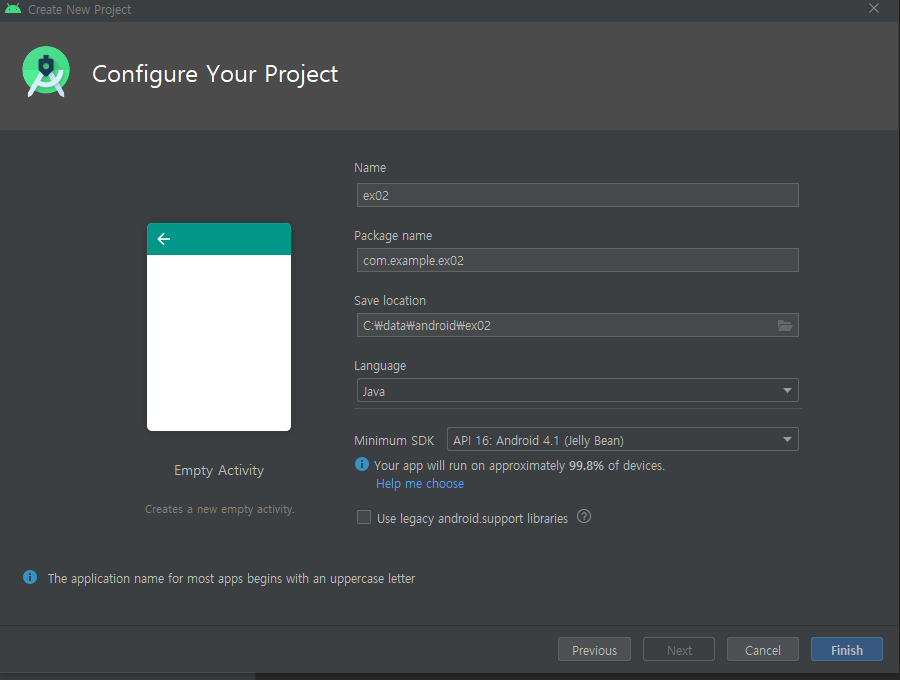

위와 같이 프로젝트 이름과 프로젝트 폴더를 설정해준다.



- 에뮬레이터 실행을 위해 아래 경로에 따라 안드로이드 31을 30으로 수정해준다.

- gradle scripts\build.gradle(module.app)

apply plugin: 'com.android.application'

android {
    compileSdkVersion 30
    buildToolsVersion "30.0.0"

    defaultConfig {
        applicationId "com.example.ex02"
        minSdkVersion 26
        targetSdkVersion 30
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

.....



- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>
</LinearLayout>



- 새로운 view를 생성한다.

- src/main/res/layout/(new)item.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#2196F3"
    android:padding="20sp"
    android:layout_margin="10sp"
    android:elevation="10sp">
    <ImageView
        android:id="@+id/img"
        android:layout_width="70sp"
        android:layout_height="70sp"
        android:src="@mipmap/ic_launcher_round"
        android:layout_marginRight="20sp"/>
    <TextView
        android:id="@+id/name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="홍"
        android:textSize="20sp"
        android:textColor="#FFFFFF"
        android:layout_toRightOf="@id/img"/>
    <TextView
        android:id="@+id/tel"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="010-0101-0101"
        android:textSize="20sp"
        android:textColor="#FFFFFF"
        android:layout_toRightOf="@+id/img"
        android:layout_below="@id/name"/>
    <TextView
        android:id="@+id/address"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="인천시 미추홀구"
        android:textColor="#FFFFFF"
        android:layout_toRightOf="@id/img"
        android:layout_below="@id/tel"/>
</RelativeLayout>



- src/main/java/com/example/ex02/MainActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
//        R=res, layout=layout,
        setContentView(R.layout.item);
    }
}

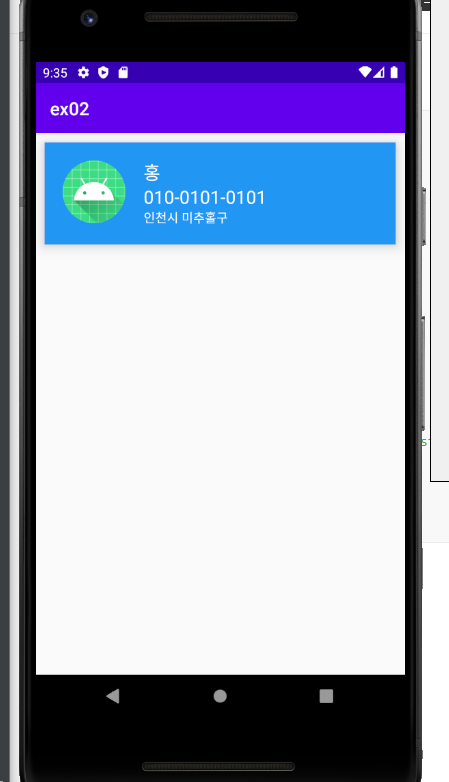

확인



- 새로운 클래스를 생성하겠다.

- src/main/java/com/example/ex02/Person.java



package com.example.ex02;

public class Person {
    private String image;
    private String name;
    private String address;
    private String tel;
    private int photo;

    // 생성자 생성
    public Person(int photo, String name, String address, String tel) {
        this.photo = photo;
        this.name = name;
        this.address = address;
        this.tel = tel;
    }

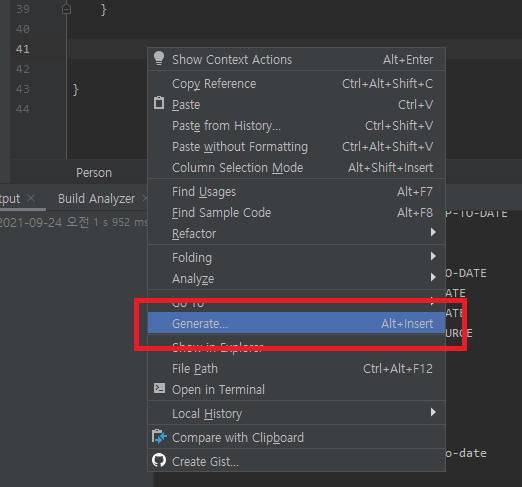

    // 겟터셋터 생성
    public String getImage() {
        return image;
    }

    public void setImage(String image) {
        this.image = image;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }

    public String getTel() {
        return tel;
    }

    public void setTel(String tel) {
        this.tel = tel;
    }

    public int getPhoto() {
        return photo;
    }

    public void setPhoto(int photo) {
        this.photo = photo;
    }

    @Override
    public String toString() {
        return "Person{" +
                "image='" + image + '\'' +
                ", name='" + name + '\'' +
                ", address='" + address + '\'' +
                ", tel='" + tel + '\'' +
                ", photo=" + photo +
                '}';
    }
}



- src/main/java/com/example/ex02/MainActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.widget.ListView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {
    ListView list;
    ArrayList<Person> array;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
//        R=res, layout=layout,
        setContentView(R.layout.activity_main);

        // ListView 생성
        list = findViewById(R.id.list);
        // Data 생성
        Person person = new Person(R.drawable.img01, "송중기","인천시 부평구 부평동", "010-0101-01001");
        array.add(person);
        person = new Person(R.drawable.img03,"조승우","서울시 관악구 신립동","010-0202-0202");
        array.add(person);
        person = new Person(R.drawable.img04,"지성","강원도 원주시","033-0303-0303");
        array.add(person);
        person = new Person(R.drawable.img05,"환빈","충청북도 청주시","041-0505-0505");
        array.add(person);

    }
}





- 에뎁터는 리스트뷰에 연결하기 위한 데이터를 연결하기 위한 수단이라고 생각하면 쉽다.

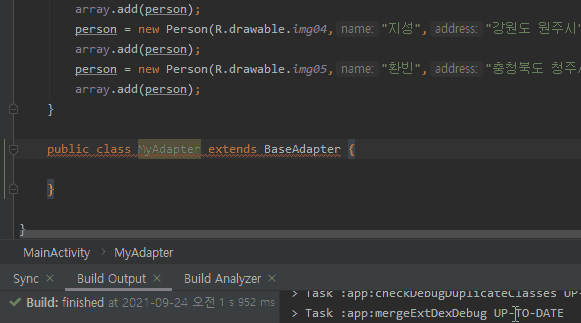

- 어뎁터를 새로 생성해보겠다.



- src/main/java/com/example/ex02/MainActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {
    ListView list;
    ArrayList<Person> array = new ArrayList();
    MyAdapter adapter;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
//        R=res, layout=layout,
        setContentView(R.layout.activity_main);

        // ListView 생성
        list = findViewById(R.id.list);

        // Data 생성
        Person person = new Person(R.drawable.img01, "송중기","인천시 부평구 부평동", "010-0101-01001");
        array.add(person);
        person = new Person(R.drawable.img03,"조승우","서울시 관악구 신립동","010-0202-0202");
        array.add(person);
        person = new Person(R.drawable.img04,"지성","강원도 원주시","033-0303-0303");
        array.add(person);
        person = new Person(R.drawable.img05,"환빈","충청북도 청주시","041-0505-0505");
        array.add(person);

        // adapter 생성
        adapter = new MyAdapter();
        list.setAdapter(adapter);
    }

    public class MyAdapter extends BaseAdapter {

        // 위 array 사이즈로 갯수를 지정한다.
        @Override
        public int getCount() {
            return array.size();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        // 중요
        @Override
        public View getView(int position, View view, ViewGroup parent) {
            view = getLayoutInflater().inflate(R.layout.item, parent, false);
            //
            Person person = array.get(position);
            ImageView img = view.findViewById(R.id.img);
            img.setImageResource(person.getPhoto());
            TextView name = view.findViewById(R.id.name);
            name.setText(person.getName());
            TextView address = view.findViewById(R.id.address);
            address.setText(person.getAddress());
            TextView tel = view.findViewById(R.id.tel);
            tel.setText(person.getTel());
            return view;
        }
    }

}

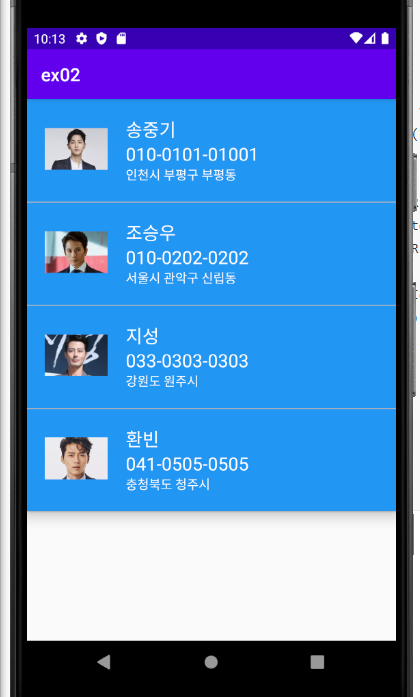

확인



- 삭제를 해보도록 하겠다.

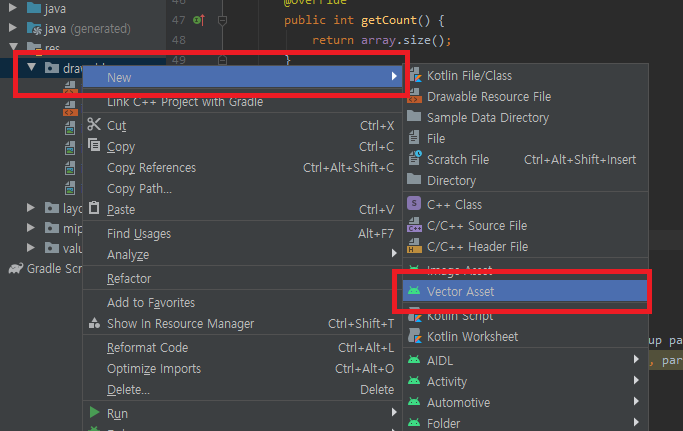

제공되는 vector 이미지



- src/main/res/drawable/(new)ic_remove.xml

- src/main/res/layout/item.xml

.....
    <ImageView
        android:id="@+id/remove"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_remove"
        android:layout_alignParentRight="true"/>
</RelativeLayout>





- src/main/java/com/example/ex02/MainActivity.java

.....
        // 중요
        @Override
        public View getView(final int position, View view, ViewGroup parent) {
            view = getLayoutInflater().inflate(R.layout.item, parent, false);
            Person person = array.get(position);

            ImageView img = view.findViewById(R.id.img);
            img.setImageResource(person.getPhoto());
            TextView name = view.findViewById(R.id.name);
            name.setText(person.getName());
            TextView address = view.findViewById(R.id.address);
            address.setText(person.getAddress());
            TextView tel = view.findViewById(R.id.tel);
            tel.setText(person.getTel());
			// new
            ImageView remove = view.findViewById(R.id.remove);
            remove.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    Toast.makeText(MainActivity.this,String.valueOf(position),Toast.LENGTH_SHORT).show();
                }
            });
            return view;
        }
.....



확인





.....
            ImageView remove = view.findViewById(R.id.remove);
            remove.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    AlertDialog.Builder box = new AlertDialog.Builder(MainActivity.this);
                    box.setTitle("질의");
                    box.setMessage(person.getName()+" 을(를) 삭제하시겠습니까?");
                    box.setPositiveButton("예",null);
                    box.setNegativeButton("아니오",null);
                    box.show();
                }
            });
            return view;
.....



확인

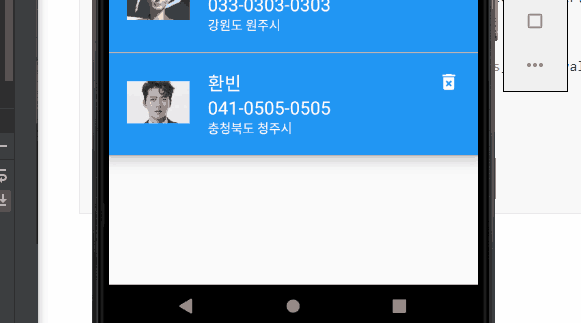

- 이제 삭제가 되도록 하겠다.

.....
            remove.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    AlertDialog.Builder box = new AlertDialog.Builder(MainActivity.this);
                    box.setTitle("질의");
                    box.setMessage(person.getName()+" 을(를) 삭제하시겠습니까?");
                    box.setNegativeButton("아니오",null);
                    box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                        @Override
                        public void onClick(DialogInterface dialog, int which) {
                            array.remove(position);
                            adapter.notifyDataSetChanged();
                        }
                    });
                    box.show();
                }
            });
.....



확인





- 이제 DB랑 연결하여 작업해보도록 하겠다.

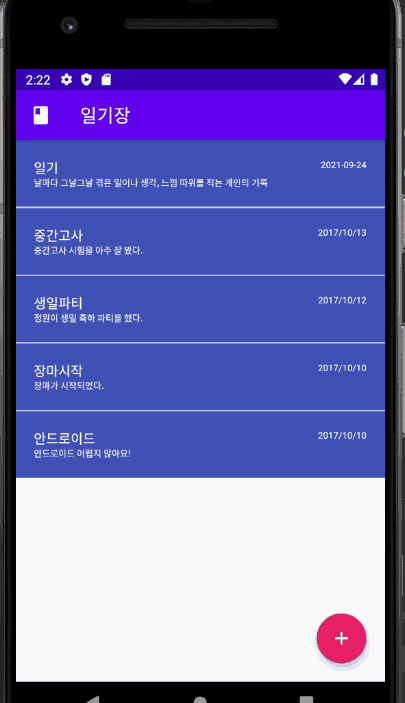

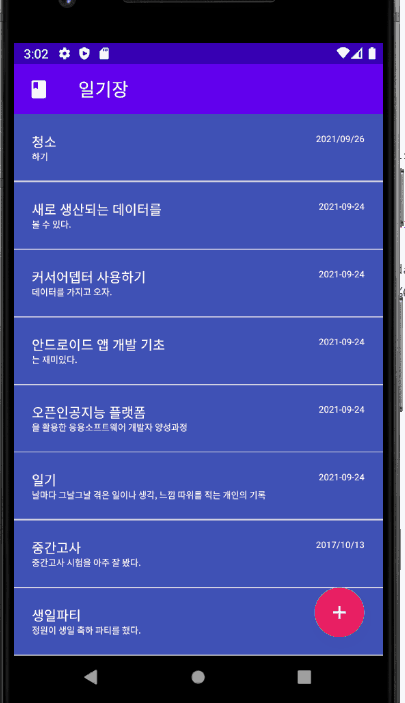

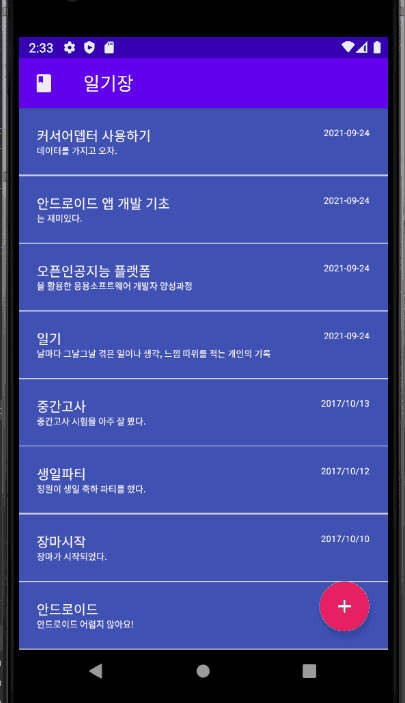

- 일기장을 위한 어플을 만들어보도로고 하겠다.

- src/main/java/com/example/ex02/(new)DiaryActivity.java

- src/main/AndroidManifest.xml

.....
        <activity android:name=".DiaryActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
.....



- sqlite이라는 로컬DB를 이용하겠다.

- src/main/java/com/example/ex02/(new)DiaryDB.java

- 생성자와 메서드를 추가한다.

- table을 생성하고 데이터를 인서트하는 문을 넣는다.

package com.example.ex02;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;

import androidx.annotation.Nullable;

public class DiaryDB extends SQLiteOpenHelper {

    public DiaryDB(@Nullable Context context) {
        super(context, "diary.db", null,1);
    }

    @Override
    public void onCreate(SQLiteDatabase db) {
        db.execSQL("create table diary(_id integer primary key autoincrement, wdate text, subject text, content text);");
        db.execSQL("insert into diary(wdate, subject, content) values('2017/10/10', '안드로이드', '안드로이드 어렵지 않아요!');");
        db.execSQL("insert into diary(wdate, subject, content) values('2017/10/10', '장마시작', '장마가 시작되었다.');");
        db.execSQL("insert into diary(wdate, subject, content) values('2017/10/12', '생일파티', '정원이 생일 축하 파티를 했다.');");
        db.execSQL("insert into diary(wdate, subject, content) values('2017/10/13', '중간고사', '중간고사 시험을 아주 잘 봤다.');");
    }

    @Override
    public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

    }
}



- 다이어리엑티비티를 시작했을때 DB를 생성하도록 하겠다.

- src/main/java/com/example/ex02/DiaryActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;

public class DiaryActivity extends AppCompatActivity {

    DiaryDB diary;
    SQLiteDatabase db;

    // db select한 정보를 커서에 넣는다.
    Cursor cursor;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_diary);

        // this = 현재 엑티비티
        diary = new DiaryDB(this);
        // diary 오픈 순간 테이블 생성
        db = diary.getWritableDatabase();
        cursor = db.rawQuery("select * from diary order by _id desc", null);
        while(cursor.moveToNext()){

        }
    }
}

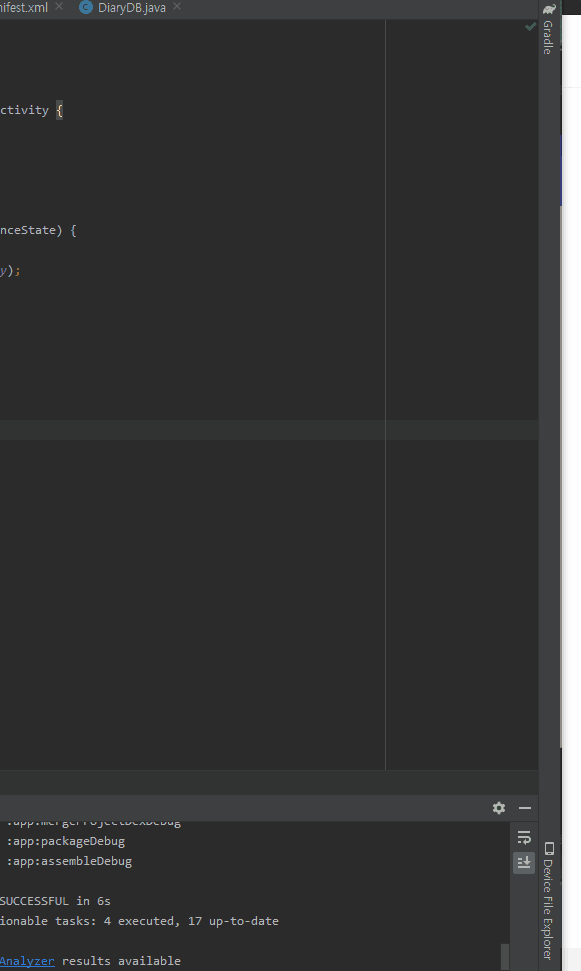

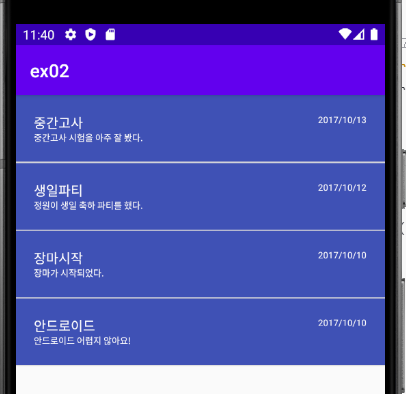

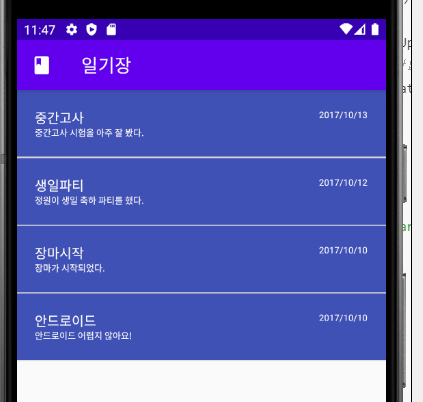

DB 생성 확인

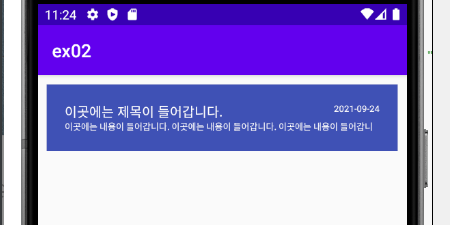

- src/main/res/layout/(new)item_diary.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#3F51B5"
    android:padding="20sp"
    android:layout_margin="10sp">
    <TextView
        android:id="@+id/subject"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="이곳에는 제목이 들어갑니다."
        android:textColor="#FFFFFF"
        android:textSize="15sp"/>
    <TextView
        android:id="@+id/content"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="이곳에는 내용이 들어갑니다. 이곳에는 내용이 들어갑니다. 이곳에는 내용이 들어갑니다."
        android:textColor="#FFFFFF"
        android:textSize="10sp"
        android:lines="1"
        android:layout_below="@id/subject"/>
    <TextView
        android:id="@+id/wdate"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="2021-09-24"
        android:textColor="#FFFFFF"
        android:textSize="10sp"
        android:layout_alignParentRight="true"/>
</RelativeLayout>



확인



- CursorAdapter 이용해서 쉽게 데이터를 가지고와서 list에 넣을 수 있다.

- src/main/java/com/example/ex02/DiaryActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Adapter;
import android.widget.CursorAdapter;
import android.widget.ListView;
import android.widget.TextView;

import org.w3c.dom.Text;

public class DiaryActivity extends AppCompatActivity {

    DiaryDB diary;
    SQLiteDatabase db;

    // db select한 정보를 커서에 넣는다.
    Cursor cursor;

    // 전역변수 생성
    ListView list;
    MyAdater adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_diary);

        // this = 현재 엑티비티
        diary = new DiaryDB(this);
        // diary 오픈 순간 테이블 생성
        db = diary.getWritableDatabase();
        cursor = db.rawQuery("select * from diary order by _id desc", null);

        // ListView 생성
        list=findViewById(R.id.list);

        // adapter 생성
        adapter = new MyAdater(this,cursor);
        list.setAdapter(adapter);
    }

    // CursorAdapter 이용해서 쉽게 데이터를 가지고와서 list에 넣을 수 있다.
    public class MyAdater extends CursorAdapter{
        public MyAdater(Context context, Cursor c) {
            super(context, c);
        }

        @Override
        public View newView(Context context, Cursor cursor, ViewGroup parent) {
            return getLayoutInflater().inflate(R.layout.item_diary, parent, false);
        }

        @Override
        public void bindView(View view, Context context, Cursor cursor) {
            TextView subject = view.findViewById(R.id.subject);
            TextView wdate = view.findViewById(R.id.wdate);
            TextView content = view.findViewById(R.id.content);

            subject.setText(cursor.getString(2));
            wdate.setText(cursor.getString(1));
            content.setText(cursor.getString(3));

        }
    }
}



확인



- 타이틀 변경, 이미지 삽입

.....
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_diary);

        // 타이틀 변경
        getSupportActionBar().setTitle("일기장");
        // 타이틀 옆에 이미지 삽입
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        // vector asset으로 drawable에 이미지 삽입
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_baseline_book_24);

        // this = 현재 엑티비티
        diary = new DiaryDB(this);
        // diary 오픈 순간 테이블 생성
        db = diary.getWritableDatabase();
        cursor = db.rawQuery("select * from diary order by _id desc", null);

        // ListView 생성
        list=findViewById(R.id.list);

        // adapter 생성
        adapter = new MyAdater(this,cursor);
        list.setAdapter(adapter);
    }
.....



확인

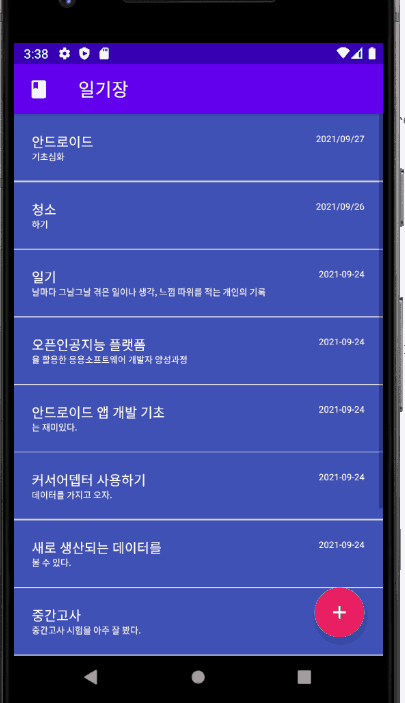

- floating button widget을 이용해보겠다.

- 라이브러리를 추가하겠다.

위치

- build.gradle

implementation 'com.android.support:design:30.0.0'

 추가

.....
dependencies {
    implementation fileTree(dir: "libs", include: ["*.jar"])
    implementation 'androidx.appcompat:appcompat:1.3.1'
    implementation 'androidx.constraintlayout:constraintlayout:2.1.0'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test.ext:junit:1.1.3'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.4.0'
    implementation 'com.android.support:design:30.0.0'
}



- src/main/java/com/example/ex02/InsertActivity.java

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".DiaryActivity">
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:layout_marginBottom="20sp"
        android:layout_marginRight="20sp"
        android:backgroundTint="#E91E63"
        android:src="@drawable/ic_baseline_add_24"/>
</RelativeLayout>



- src/main/java/com/example/ex02/(new)InsertActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

public class InsertActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("일기쓰기");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
    }
}



- src/main/java/com/example/ex02/DiaryActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Adapter;
import android.widget.CursorAdapter;
import android.widget.ListView;
import android.widget.TextView;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import org.w3c.dom.Text;

public class DiaryActivity extends AppCompatActivity {

    DiaryDB diary;
    SQLiteDatabase db;

    // db select한 정보를 커서에 넣는다.
    Cursor cursor;

    // 전역변수 생성
    ListView list;
    MyAdater adapter;
    //new
    FloatingActionButton add;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_diary);

        // 타이틀 변경
        getSupportActionBar().setTitle("일기장");
        // 타이틀 옆에 이미지 삽입
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        // vector asset으로 drawable에 이미지 삽입
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_baseline_book_24);

		//new
        add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(DiaryActivity.this, InsertActivity.class);
                startActivity(intent);
            }
        });
.....

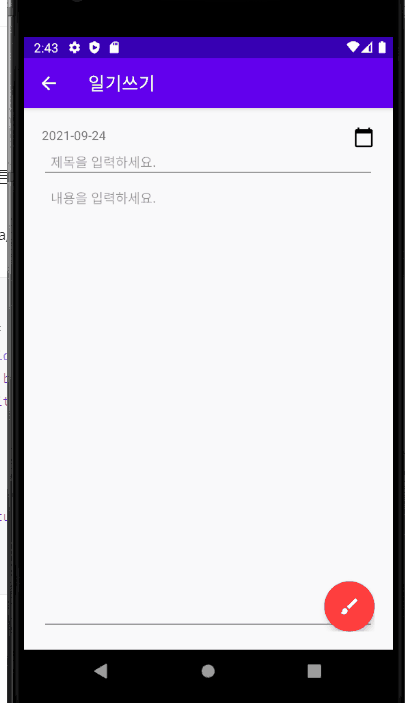

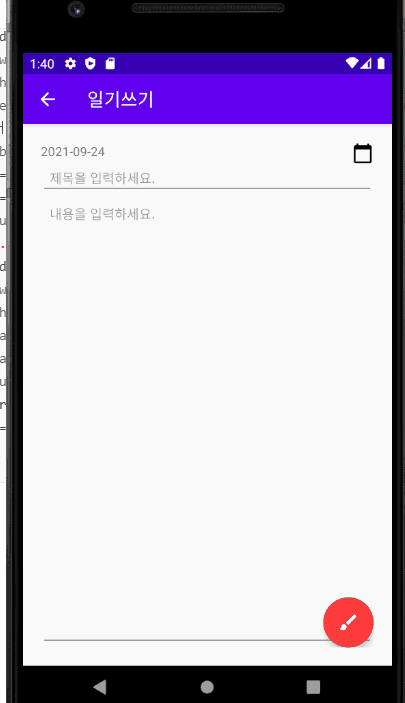

- src/main/res/layout/activity_insert.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".InsertActivity"
    android:padding="20sp">
    <TextView
        android:id="@+id/wdate"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="2021-09-24"/>
    <ImageView
        android:id="@+id/calender"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_calendar"
        android:layout_alignParentRight="true"/>
    <EditText
        android:id="@+id/subject"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="15sp"
        android:hint="제목을 입력하세요."
        android:layout_below="@id/wdate"
        android:padding="10sp"/>
    <EditText
        android:id="@+id/content"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="15sp"
        android:hint="내용을 입력하세요."
        android:layout_below="@id/subject"
        android:gravity="top"
        android:padding="10sp"
        android:background="null"/>
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/insert"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:backgroundTint="#FF3A3A"
        android:src="@drawable/ic_add"
        app:borderWidth="0sp"/>
</RelativeLayout>



확인





- 이제 다이어리 테이블에 insert 작업을 하도록 하겠다.

- src/main/java/com/example/ex02/InsertActivity.java

package com.example.ex02;

import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

public class InsertActivity extends AppCompatActivity {

    FloatingActionButton insert;
    TextView wdate;
    EditText subject, content;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("일기쓰기");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        insert = findViewById(R.id.insert);

        wdate = findViewById(R.id.wdate);
        subject = findViewById(R.id.subject);
        content = findViewById(R.id.content);

        insert.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                String strDate = wdate.getText().toString();
                String strSubject = subject.getText().toString();
                String strContent = content.getText().toString();
                if(strSubject.length()==0){
                    Toast.makeText(InsertActivity.this, "제목을 입력하세요.",Toast.LENGTH_SHORT).show();
                }else if(strContent.length()==0){
                    Toast.makeText(InsertActivity.this, "내용을 입력하세요.",Toast.LENGTH_SHORT).show();
                }else{

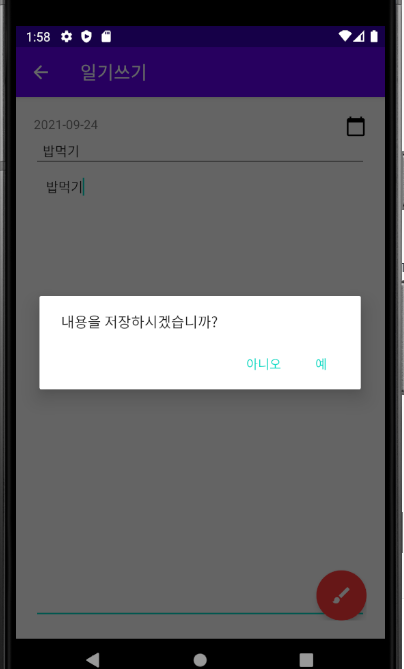

                    AlertDialog.Builder box = new AlertDialog.Builder(InsertActivity.this);
                    box.setMessage("내용을 저장하시겠습니까?");
                    box.setNegativeButton("아니오", null);
                    box.setPositiveButton("예",null);
                    box.show();
                }
            }
        });
    }
}



확인



- DB를 오픈하겠다.

package com.example.ex02;

import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

public class InsertActivity extends AppCompatActivity {

.....

    // DB 오픈을 위한 변수 선언
    DiaryDB diaryDB;
    SQLiteDatabase db;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        // DB 오픈
        diaryDB = new DiaryDB(this);
        // db = 다이어리 정보 put
        db = diaryDB.getWritableDatabase();

.....

        insert.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                final String strDate = wdate.getText().toString();
                final String strSubject = subject.getText().toString();
                final String strContent = content.getText().toString();
                if(strSubject.length()==0){
                    Toast.makeText(InsertActivity.this, "제목을 입력하세요.",Toast.LENGTH_SHORT).show();
                }else if(strContent.length()==0){
                    Toast.makeText(InsertActivity.this, "내용을 입력하세요.",Toast.LENGTH_SHORT).show();
                }else{
                    AlertDialog.Builder box = new AlertDialog.Builder(InsertActivity.this);
                    box.setMessage("내용을 저장하시겠습니까?");
                    box.setNegativeButton("아니오", null);
                    box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                        @Override
                        public void onClick(DialogInterface dialogInterface, int i) {
                            String sql = "insert into diary(wdate, subject, content) values(";
                            sql +="'"+strDate+"',";
                            sql +="'"+strSubject+"',";
                            sql +="'"+strContent+"')";
                            db.execSQL(sql);
                            // 저장 후 확인 Toast
                            Toast.makeText(InsertActivity.this, "저장되었습니다.",Toast.LENGTH_SHORT).show();
                            // insert 후 액티비티 fin
                            finish();
                        }
                    });
                    box.show();
                }
            }
        });
    }
}



확인



- 데이터 입력 후 앱을 재실행 할 필요없이 데이터가 갱신되도록 하겠다.

- src/main/java/com/example/ex02/DiaryActivity.java

package com.example.ex02;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Adapter;
import android.widget.CursorAdapter;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import org.w3c.dom.Text;

public class DiaryActivity extends AppCompatActivity {

    DiaryDB diary;
    SQLiteDatabase db;

    // db select한 정보를 커서에 넣는다.
    Cursor cursor;

    // 전역변수 생성
    ListView list;
    MyAdater adapter;
    FloatingActionButton add;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
.....
    }

    // CursorAdapter 이용해서 쉽게 데이터를 가지고와서 list에 넣을 수 있다.
    public class MyAdater extends CursorAdapter{
.....
    }

	// new
    @Override
    protected void onRestart() {
        cursor = db.rawQuery("select * from diary order by _id desc", null);
        adapter.changeCursor(cursor);
        super.onRestart();
    }
}



확인



- 뒤로가기 버튼이 작동하게 하겠다.

- src/main/java/com/example/ex02/InsertActivity.java

.....
    // 해당 액티비티에 뒤로가기 버튼이 작동되게 하겠다.
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



확인





- insert 시 오늘 날짜가 입력되도록 하겠다.

- src/main/java/com/example/ex02/InsertActivity.java

package com.example.ex02;

.....

public class InsertActivity extends AppCompatActivity {

    FloatingActionButton insert;
    ImageView calendar;
    TextView wdate;
    EditText subject, content;

    // DB 오픈을 위한 변수 선언
    DiaryDB diaryDB;
    SQLiteDatabase db;

    // 오늘 날짜 입력을 위한 변수
    int mYear, mMonth, mDay;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        // 그레고리캘린더로 년월일 가지고 오기
        GregorianCalendar cal = new GregorianCalendar();
        mYear = cal.get(Calendar.YEAR);
        mMonth = cal.get(Calendar.MONTH);
        mDay = cal.get(Calendar.DAY_OF_MONTH);

        // DB 오픈
        diaryDB = new DiaryDB(this);
        // db = 다이어리 정보 put
        db = diaryDB.getWritableDatabase();

        getSupportActionBar().setTitle("일기쓰기");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        insert = findViewById(R.id.insert);

        wdate = findViewById(R.id.wdate);
        //                          4자리/2자리/2자리, 순서대로
        wdate.setText(String.format("%04d/%02d/%02d",mYear,mMonth+1,mDay));
        subject = findViewById(R.id.subject);
        content = findViewById(R.id.content);

.....

        calendar = findViewById(R.id.calender);
        calendar.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                new DatePickerDialog(InsertActivity.this, new DatePickerDialog.OnDateSetListener() {
                    @Override
                    public void onDateSet(DatePicker datePicker, int year, int month, int dayOfMonth) {
                        wdate.setText(String.format("%04d/%02d/%02d",year,month+1,dayOfMonth));
                    }
                }, mYear,mMonth,mDay).show();
            }
        });
    }

.....
}



확인





- 다이어리 아이템을 클릭하여 정보를 읽는(Read) 작업을 하도록 하겠다.

- src/main/java/com/example/ex02/ReadActivity.java

package com.example.ex02;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.MenuItem;

public class ReadActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_read);

        getSupportActionBar().setTitle("일정정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



- src/main/java/com/example/ex02/DiaryActivity.java

.....
        // adapter 생성
        adapter = new MyAdater(this,cursor);
        list.setAdapter(adapter);
		//new
        list.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                Intent intent = new Intent(DiaryActivity.this, ReadActivity.class);
                //System.out.println("............"+cursor.getInt(0));
                intent.putExtra("id", cursor.getInt(0));
                startActivity(intent);
            }
        });
.....



- src/main/java/com/example/ex02/ReadActivity.java

package com.example.ex02;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.MenuItem;
import android.widget.EditText;
import android.widget.TextView;

public class ReadActivity extends AppCompatActivity {

    int id;
    TextView wdate;
    EditText subject, content;

    DiaryDB diaryDB;
    SQLiteDatabase db;
    Cursor cursor;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("일정정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        wdate = findViewById(R.id.wdate);
        subject = findViewById(R.id.subject);
        content = findViewById(R.id.content);

        Intent intent = getIntent();
        id = intent.getIntExtra("id",-1);

        diaryDB = new DiaryDB(this);
        db = diaryDB.getWritableDatabase();
        cursor = db.rawQuery("select * from diary where _id="+id,null);

        if(cursor.moveToNext()){
            wdate.setText(cursor.getString(1));
            subject.setText(cursor.getString(2));
            content.setText(cursor.getString(3));
        }
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



확인



- 읽어온 정보를 수정하는 작업을 하도록 하겠다.

- src/main/java/com/example/ex02/ReadActivity.java

package com.example.ex02;

import androidx.annotation.NonNull;
import androidx.annotation.RequiresPermission;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.MenuItem;
import android.view.View;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

public class ReadActivity extends AppCompatActivity {
    int id;
    DiaryDB diaryDB;
    SQLiteDatabase db;
    Cursor cursor;
    TextView wdate;
    EditText subject, content;
    FloatingActionButton update;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("일기정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        Intent intent=getIntent();
        id = intent.getIntExtra("id", -1);

        wdate = findViewById(R.id.wdate);
        subject = findViewById(R.id.subject);
        content = findViewById(R.id.content);
        update = findViewById(R.id.insert);
        update.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                AlertDialog.Builder box=new AlertDialog.Builder(ReadActivity.this);
                box.setMessage("수정하실래요?");
                box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialog, int which) {
                        String strDate=wdate.getText().toString();
                        String strSubject=subject.getText().toString();
                        String strContent=content.getText().toString();
                        String sql="update diary set ";
                        sql += "wdate='" + strDate + "',";
                        sql += "subject='" + strSubject + "',";
                        sql += "content='" + strContent + "' ";
                        sql += "where _id=" + id;
                        db.execSQL(sql);
                        Toast.makeText(ReadActivity.this, "수정완료!", Toast.LENGTH_SHORT).show();
                        finish();
                    }
                });
                box.setNegativeButton("아니오", null);
                box.show();
            }
        });



        diaryDB=new DiaryDB(this);
        db=diaryDB.getWritableDatabase();
        cursor = db.rawQuery("select * from diary where _id=" + id, null);

        if(cursor.moveToNext()) {
            wdate.setText(cursor.getString(1));
            subject.setText(cursor.getString(2));
            content.setText(cursor.getString(3));
        }
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



확인





- 삭제하도록 하겠다.

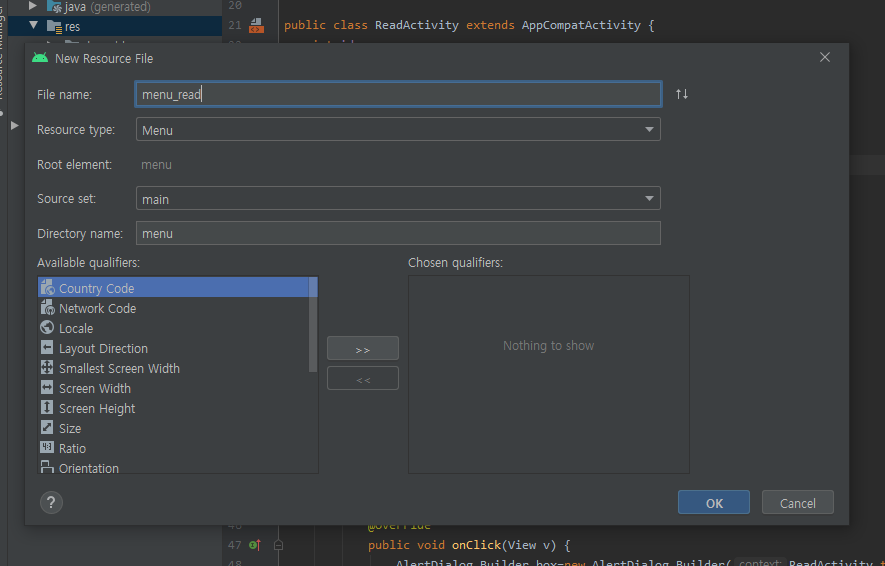

- src/main/res/(new)menu/(new)menu_read.xml

확인



<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <item
        android:id="@+id/remove"
        android:title="삭제"
        android:icon="@drawable/ic_remove"
        app:showAsAction="always"/>
</menu>



- src/main/java/com/example/ex02/ReadActivity.java

.....
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
            case R.id.remove:
                AlertDialog.Builder box = new AlertDialog.Builder(this);
                box.setMessage("삭제하시겠습니까?");
                box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialogInterface, int i) {
                        String sql = "delete from diary where _id="+id;
                        db.execSQL(sql);
                        Toast.makeText(ReadActivity.this,"삭제되었습니다.",Toast.LENGTH_SHORT).show();
                        finish();
                    }
                });
                box.setNegativeButton("아니오",null);
                box.show();
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.menu_read,menu);
        return super.onCreateOptionsMenu(menu);
    }
}

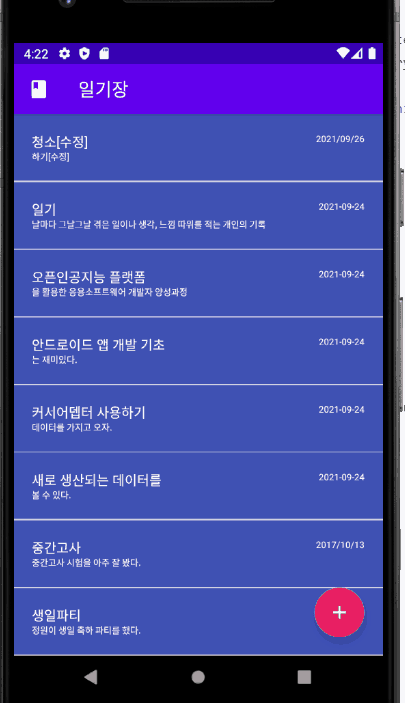

확인





저작자표시

'ICIA 수업일지' 카테고리의 다른 글

2021.09.28 수업일지(안드로이드 기초, SQLite)  (0) 2021.09.28
2021.09.27 수업일지(안드로이드 개발 기초, SQLite)  (0) 2021.09.27
2021.09.23 수업일지(안드로이드 개발 기초, Activity, View)  (0) 2021.09.23
2021.09.17 수업일지(React.js을 이용한 블로그 개설)  (0) 2021.09.17
2021.09.16 수업일지(React.js)  (0) 2021.09.16

관련글

티스토리툴바
