2021.09.27 수업일지(안드로이드 개발 기초, SQLite)

by 주성씨 2021. 9. 27.

- SQLite DB : 안드로이드에서 기본적으로 제공하는 로컬(핸드폰) DB

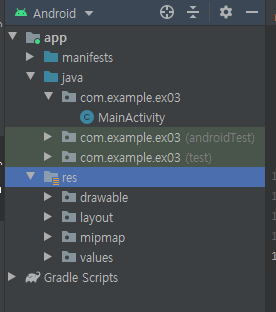

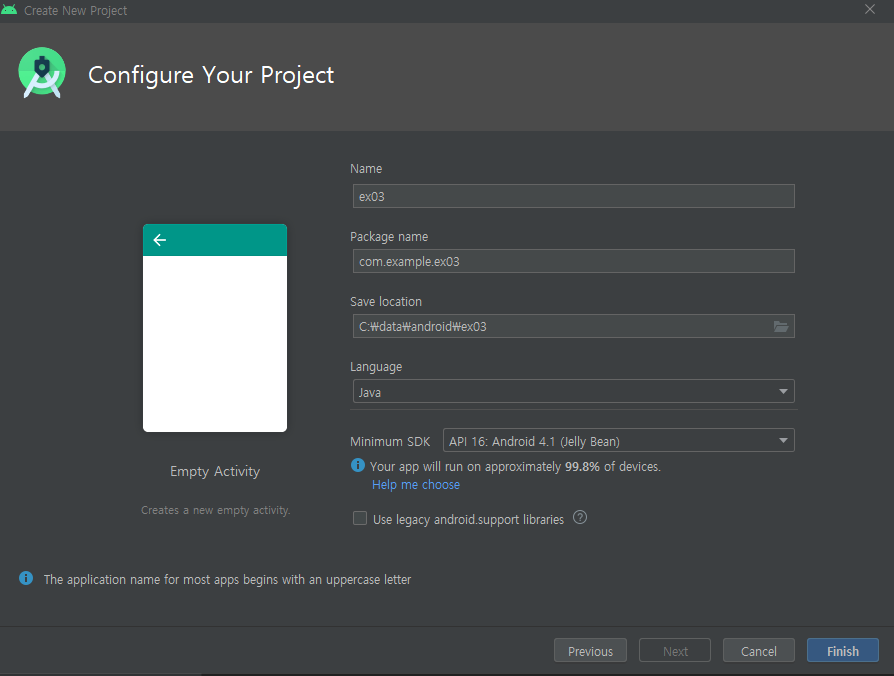

- 프로젝트 생성



생성완료



- 프로젝트 app 실행을 위해 아래와 같이 수정

- build.gradle

apply plugin: 'com.android.application'

android {
    compileSdkVersion 30 // 수정
    buildToolsVersion "30.0.0" // 수정

    defaultConfig {
        applicationId "com.example.ex03"
        minSdkVersion 26 // 수정
        targetSdkVersion 30 // 수정
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    implementation fileTree(dir: "libs", include: ["*.jar"])
    implementation 'androidx.appcompat:appcompat:1.3.1'
    implementation 'androidx.constraintlayout:constraintlayout:2.1.0'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test.ext:junit:1.1.3'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.4.0'

}

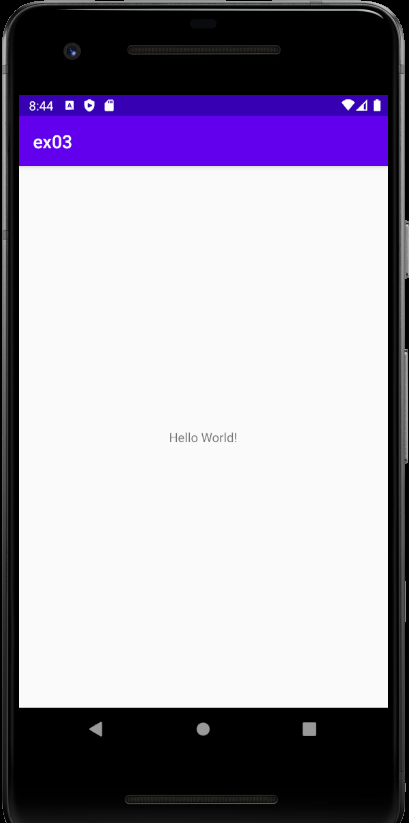

확인

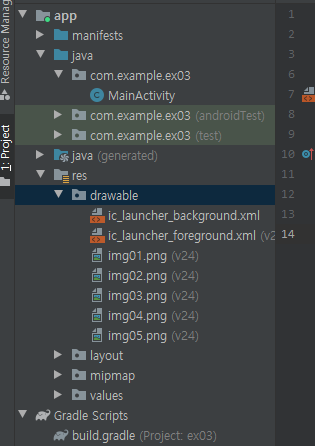

- 이전에 사용했던 이미지를 복사해서 아래와 같이 넣는다.

drawable-v24.zip
0.23MB
확인

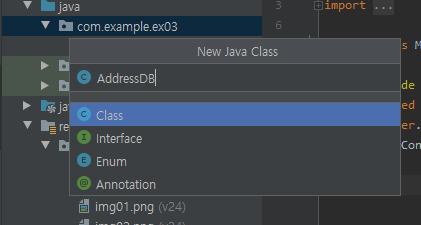

- SQLite DB 연결을 위한 java class를 생성한다.

- 생성하고 method와 instructor을 만든다.

확인





- src/main/java/com/example/ex03/AddressDB.java

package com.example.ex03;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;

import androidx.annotation.Nullable;

public class AddressDB extends SQLiteOpenHelper {
    public AddressDB(@Nullable Context context) {
        super(context, "address.db",null,1);
    }

    @Override
    public void onCreate(SQLiteDatabase db) {
        String sql = "create table address(_id integer primary key autoincrement, photo text, name text, tel text, juso text)";
        db.execSQL(sql);
        sql = "insert into address(photo,name,tel,juso) values('R.drawable.img01', '송중기', '010-0101-0101', '서울시 강남구 신사동')";
        db.execSQL(sql);
        sql = "insert into address(photo,name,tel,juso) values('R.drawable.img02', '박지성', '010-0202-0202', '서울시 관악구 신립동')";
        db.execSQL(sql);
        sql = "insert into address(photo,name,tel,juso) values('R.drawable.img03', '이지성', '010-0303-0303', '서울시 은평구 불광동')";
        db.execSQL(sql);
        sql = "insert into address(photo,name,tel,juso) values('R.drawable.img04', '조인성', '010-0404-0404', '서울시 용산구 이태원동')";
        db.execSQL(sql);
        sql = "insert into address(photo,name,tel,juso) values('R.drawable.img05', '현빈', '010-0505-0505', '서울시 노원구 월계동')";
        db.execSQL(sql);
    }

    @Override
    public void onUpgrade(SQLiteDatabase sqLiteDatabase, int i, int i1) {

    }
}



- src/main/java/com/example/ex03/AddressDB.java

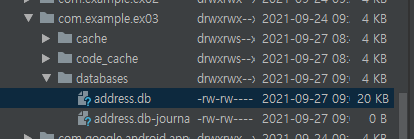

- Device File Explorer/data/data/com.example.ex03/databases/address.db 에서 db가 생성된 것을 확인한다.

package com.example.ex03;

import androidx.appcompat.app.AppCompatActivity;

import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;

public class MainActivity extends AppCompatActivity {
    AddressDB addressDB;
    SQLiteDatabase db;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        addressDB = new AddressDB(this);
        db = addressDB.getWritableDatabase();
    }
}

확인



- 이제 Layout을 꾸며보자.

- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <ListView
        android:id="@+id/list"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        />

</RelativeLayout>



- src/main/res/layout/(new)item.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#FFD97A"
    android:padding="10sp">
    <ImageView
        android:id="@+id/photo"
        android:layout_width="70sp"
        android:layout_height="70sp"
        android:src="@mipmap/ic_launcher_round"
        android:layout_marginRight="20sp"/>
    <TextView
        android:id="@+id/name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="이방원"
        android:textSize="25sp"
        android:layout_toRightOf="@id/photo"/>
    <TextView
        android:id="@+id/tel"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="010-0000-0000"
        android:textSize="15sp"
        android:layout_toRightOf="@id/photo"
        android:layout_below="@id/name"/>
    <TextView
        android:id="@+id/juso"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="인천시 중구 신포동"
        android:textSize="15sp"
        android:layout_toRightOf="@id/photo"
        android:layout_below="@id/tel"/>
</RelativeLayout>



- 이제 DB에 데이터를 item.xml에 찍어보겠다.

- src/main/java/com/example/ex03/MainActivity.java

package com.example.ex03;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.CursorAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {
    AddressDB addressDB;
    SQLiteDatabase db;
    Cursor cursor;
    ListView list;
    MyAdapter myAdapter;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        addressDB = new AddressDB(this);
        db = addressDB.getWritableDatabase();

        String sql = "select * from address order by _id desc";
        cursor = db.rawQuery(sql,null);

        list = findViewById(R.id.list);

        myAdapter = new MyAdapter(this, cursor);
        list.setAdapter(myAdapter);
    }

    public class MyAdapter extends CursorAdapter {
        public MyAdapter(Context context, Cursor c) {
            super(context, c);
        }

        @Override
        public View newView(Context context, Cursor cursor, ViewGroup viewGroup) {
            return getLayoutInflater().inflate(R.layout.item, viewGroup, false);
        }

        @Override
        public void bindView(View view, Context context, Cursor cursor) {
            ImageView photo = view.findViewById(R.id.photo);
            photo.setImageResource(R.drawable.img01);
            TextView name = view.findViewById(R.id.name);
            name.setText(cursor.getString(2));
            TextView tel = view.findViewById(R.id.tel);
            tel.setText(cursor.getString(3));
            TextView juso = view.findViewById(R.id.juso);
            juso.setText(cursor.getString(4));
        }
    }
}

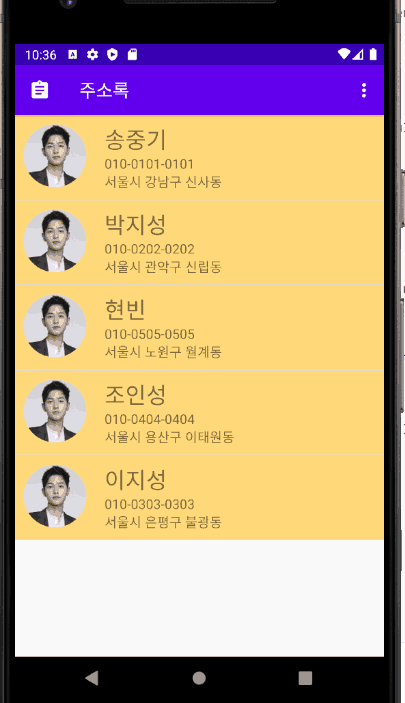

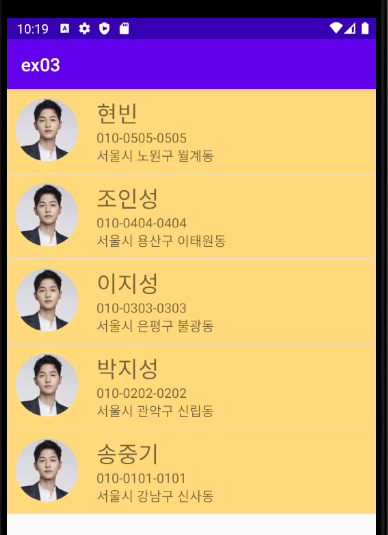

- 이미지를 원형으로 출력해보겠다.

- build.gradle

dependencies {
.....
    implementation 'de.hdodenhof:circleimageview:3.1.0' // 추가
}



- src/main/res/layout/item.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#FFD97A"
    android:padding="10sp">
    <de.hdodenhof.circleimageview.CircleImageView // 수정
        android:id="@+id/photo"
        android:layout_width="70sp"
        android:layout_height="70sp"
        android:src="@mipmap/ic_launcher_round"
        android:layout_marginRight="20sp"/>
....
</RelativeLayout>



확인

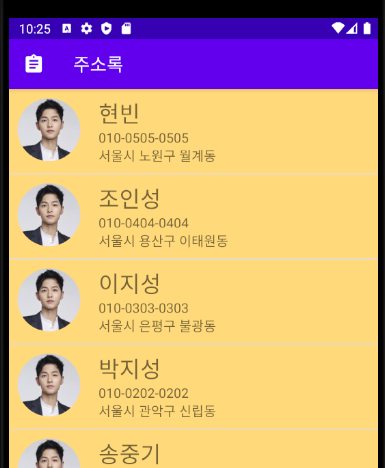

- 주소록 타이틀 변경 및 이미지 추가

- src/main/java/com/example/ex03/MainActivity.java

package com.example.ex03;

import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.CursorAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends AppCompatActivity {
    AddressDB addressDB;
    SQLiteDatabase db;
    Cursor cursor;
    ListView list;
    MyAdapter myAdapter;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // 타이틀 변경 및 이미지 추가
        getSupportActionBar().setTitle("주소록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        // 드로우에이블에서 벡터 에셋으로 이미지 추가
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_address_image);

.....



확인

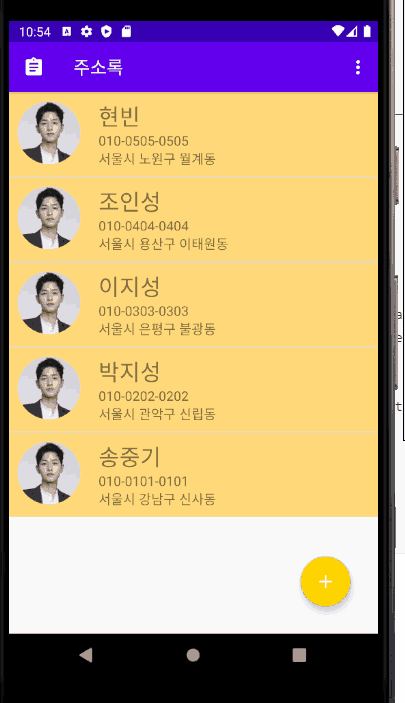

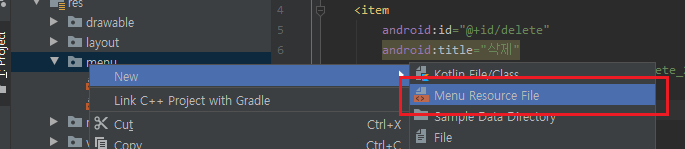

- 주소를 정렬하는 menu를 만들어주도록 하겠다.

- src/main/res/(new)menu/(new)menu_read.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
    android:id="@+id/id"
    android:title="최신순정렬"/>
    <item
        android:id="@+id/name"
        android:title="이름순정렬"/>
    <item
        android:id="@+id/tel"
        android:title="전화번호순순정렬"/>
    <item
        android:id="@+id/juso"
        android:title="주소순정렬"/>
</menu>



- src/main/java/com/example/ex03/MainActivity.java

.....

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.menu_read, menu);
        return super.onCreateOptionsMenu(menu);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        String sql = "";
        switch (item.getItemId()){
            case R.id.id:
                sql = "select * from address order by _id";
                break;
            case R.id.name:
                sql = "select * from address order by name";
                break;
            case R.id.tel:
                sql = "select * from address order by tel";
                break;
            case R.id.juso:
                sql = "select * from address order by juso";
                break;
        }
        cursor = db.rawQuery(sql, null);
        myAdapter.changeCursor(cursor);

        return super.onOptionsItemSelected(item);
    }
}

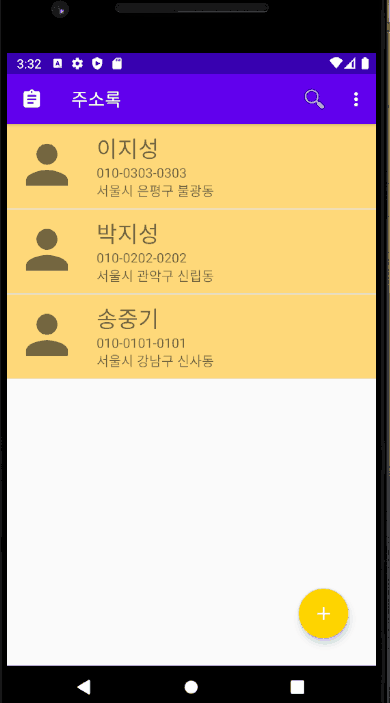

확인

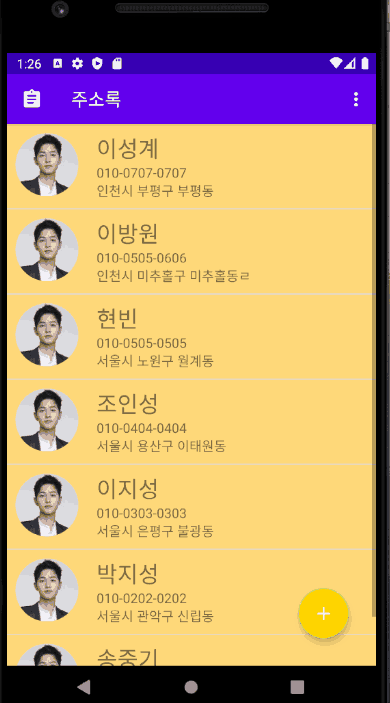

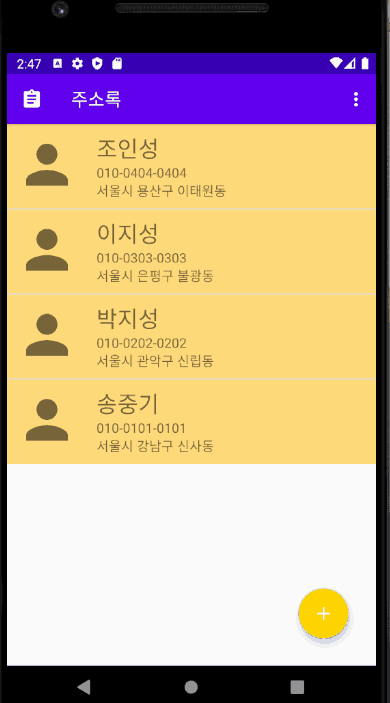

- 이제 등록하는 작업을 해보도록 하겠다. (Insert)

- floating button widget을 이용해보겠다.

- 라이브러리를 추가하겠다.

위치



- build.gradle

implementation 'com.android.support:design:30.0.0'

 추가



- src/main/res/layout/activity_main.xml

.....

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_add"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:layout_marginRight="30sp"
        android:layout_marginBottom="30sp"
        android:backgroundTint="#FFD400"/>
</RelativeLayout>

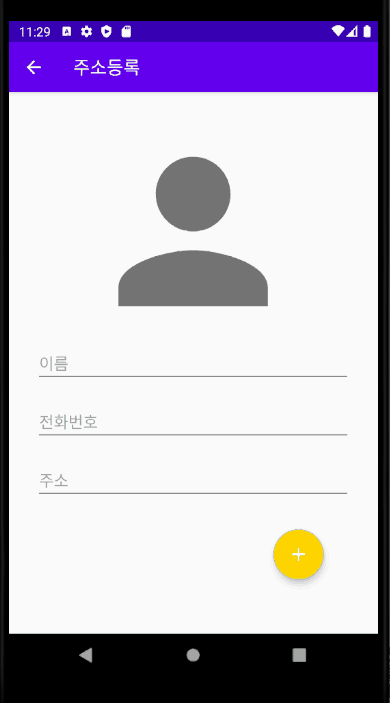

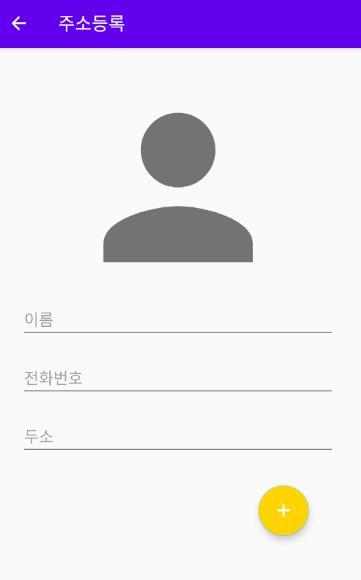

- 추가를 위한 액티비티 생성, 뒤로가길로 홈으로

- src/main/java/com/example/ex03/InsertActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.MenuItem;

public class InsertActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("주소등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }
        return super.onOptionsItemSelected(item);
    }
}



- src/main/java/com/example/ex03/MainActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.CursorAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

public class MainActivity extends AppCompatActivity {
    AddressDB addressDB;
    SQLiteDatabase db;
    Cursor cursor;
    ListView list;
    MyAdapter myAdapter;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // 타이틀 변경
        getSupportActionBar().setTitle("주소록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_address_image);

        addressDB = new AddressDB(this);
        db = addressDB.getWritableDatabase();

        String sql = "select * from address order by _id desc";
        cursor = db.rawQuery(sql,null);

        list = findViewById(R.id.list);

        myAdapter = new MyAdapter(this, cursor);
        list.setAdapter(myAdapter);

		// new
        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(MainActivity.this, InsertActivity.class);
                startActivity(intent);
            }
        });
    }
.....



확인





- 이제 insert 액티비티를 꾸며주도록 하겠다.

- src/main/res/layout/activity_insert.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".InsertActivity"
    android:layout_margin="30sp">

    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/photo"
        android:layout_width="250sp"
        android:layout_height="250sp"
        android:src="@drawable/ic_baseline_person_24"
        android:layout_centerHorizontal="true"
        />
    <EditText
        android:id="@+id/name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="이름"
        android:layout_below="@id/photo"
        android:layout_marginBottom="20sp"/>
    <EditText
        android:id="@+id/tel"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="전화번호"
        android:layout_below="@id/name"
        android:layout_marginBottom="20sp"/>
    <EditText
        android:id="@+id/juso"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="두소"
        android:layout_below="@id/tel"
        android:layout_marginBottom="20sp"/>
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_add"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:layout_marginRight="30sp"
        android:layout_marginBottom="30sp"
        android:backgroundTint="#FFD400"/>
</RelativeLayout>



확인



- 이제 add 버튼으로 저장하는 작업을 하도록 하겠다.

- src/main/java/com/example/ex03/InsertActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.provider.Telephony;
import android.view.MenuItem;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

public class InsertActivity extends AppCompatActivity {

    EditText name,tel,juso;
    AddressDB addressDB;
    SQLiteDatabase db;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        addressDB = new AddressDB(this);
        db= addressDB.getWritableDatabase();

        getSupportActionBar().setTitle("주소등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        // 아이디 읽어오기
        name = findViewById(R.id.name);
        tel = findViewById(R.id.tel);
        juso = findViewById(R.id.juso);

        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                final String strName = name.getText().toString();
                final String strTel = tel.getText().toString();
                final String strJuso = juso.getText().toString();
                if(strName.length()==0 || strTel.length() == 0 || strJuso.length() == 0){
                    Toast.makeText(InsertActivity.this, "내용을 입력하세요.", Toast.LENGTH_SHORT).show();
                }else{
                    AlertDialog.Builder box = new AlertDialog.Builder(InsertActivity.this);
                    box.setMessage("저장하시겠습니까?");
                    box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                        @Override
                        public void onClick(DialogInterface dialogInterface, int i) {
                            String sql = "insert into address(name, tel, juso) values(";
                            sql += "'"+strName+"', ";
                            sql += "'"+strTel+"', ";
                            sql += "'"+strJuso+"')";
                            db.execSQL(sql);
                            finish();
                        }
                    });
                    box.setNegativeButton("아니오",null);
                    box.show();
                }
            }
        });
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }
        return super.onOptionsItemSelected(item);
    }
}



- src/main/java/com/example/ex03/MainActivity.java

.....
    @Override
    protected void onRestart() {
        cursor = db.rawQuery("select * from address order by _id desc", null);
        myAdapter.changeCursor(cursor);
        super.onRestart();
    }
}



확인



- read 액티비티를 생성하겠다.

- src/main/java/com/example/ex03/MainActivity.java

.....
        list = findViewById(R.id.list);

        // list 불러온 후 id를 intent에 담아서 read액티비티에 넘긴다.
        list.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                Intent intent = new Intent(MainActivity.this, ReadActivity.class);
                intent.putExtra("id",cursor.getInt(0));
                startActivity(intent);
            }
        });
.....



- src/main/java/com/example/ex03/(new)ReadActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.MenuItem;
import android.widget.EditText;

public class ReadActivity extends AppCompatActivity {

    AddressDB addressDB;
    SQLiteDatabase db;
    Cursor cursor;
    EditText name, tel, juso;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

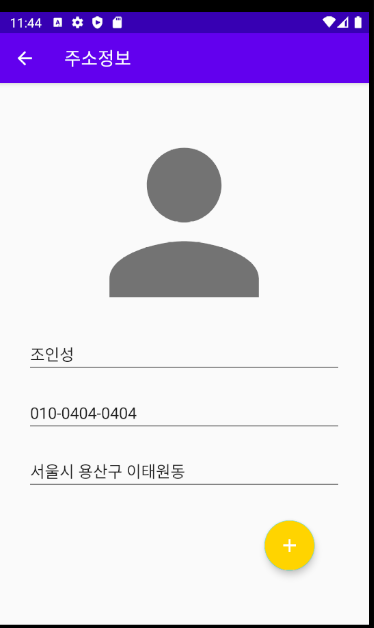

        getSupportActionBar().setTitle("주소정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        addressDB = new AddressDB(this);
        db = addressDB.getWritableDatabase();

        Intent intent = getIntent();
        int id = intent.getIntExtra("id",0);
        cursor = db.rawQuery("select * from address where _id="+id,null);

        name = findViewById(R.id.name);
        tel = findViewById(R.id.tel);
        juso = findViewById(R.id.juso);

        if(cursor.moveToNext()){
            name.setText(cursor.getString(2));
            tel.setText(cursor.getString(3));
            juso.setText(cursor.getString(4));
        }
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }
        return super.onOptionsItemSelected(item);
    }
}



확인





- 이미지 경로

- 디바이스 파일 익스프롤러/storage/emulated/0/Pictures



- 주소정보에서 이미지를 클릭하면 포토앱이 실행되도록 하겠다.

- src/main/java/com/example/ex03/InsertActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.content.Intent;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.provider.MediaStore;
import android.provider.Telephony;
import android.view.MenuItem;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import de.hdodenhof.circleimageview.CircleImageView;

public class InsertActivity extends AppCompatActivity {

    EditText name,tel,juso;
    AddressDB addressDB;
    SQLiteDatabase db;
    CircleImageView photo;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        addressDB = new AddressDB(this);
        db= addressDB.getWritableDatabase();

        getSupportActionBar().setTitle("주소등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        // 아이디 읽어오기
        name = findViewById(R.id.name);
        tel = findViewById(R.id.tel);
        juso = findViewById(R.id.juso);

        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                final String strName = name.getText().toString();
                final String strTel = tel.getText().toString();
                final String strJuso = juso.getText().toString();
                if(strName.length()==0 || strTel.length() == 0 || strJuso.length() == 0){
                    Toast.makeText(InsertActivity.this, "내용을 입력하세요.", Toast.LENGTH_SHORT).show();
                }else{
                    AlertDialog.Builder box = new AlertDialog.Builder(InsertActivity.this);
                    box.setMessage("저장하시겠습니까?");
                    box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                        @Override
                        public void onClick(DialogInterface dialogInterface, int i) {
                            String sql = "insert into address(name, tel, juso) values(";
                            sql += "'"+strName+"', ";
                            sql += "'"+strTel+"', ";
                            sql += "'"+strJuso+"')";
                            db.execSQL(sql);
                            finish();
                        }
                    });
                    box.setNegativeButton("아니오",null);
                    box.show();
                }
            }
        });
		// new
        photo = findViewById(R.id.photo);
        photo.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI);
                startActivityForResult(intent, 0);
            }
        });
    }
	// new
    @Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if(requestCode==0){
            photo.setImageURI(data.getData());
        }
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }
        return super.onOptionsItemSelected(item);
    }
}



확인



- 이제 이미지를 SQLite에 저장하도록 하겠다.

- src/main/java/com/example/ex03/InsertActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.content.Intent;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.provider.MediaStore;
import android.provider.Telephony;
import android.view.MenuItem;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import de.hdodenhof.circleimageview.CircleImageView;

public class InsertActivity extends AppCompatActivity {

    EditText name,tel,juso;
    AddressDB addressDB;
    SQLiteDatabase db;
    // new
    CircleImageView photo;
    String strPhoto;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        addressDB = new AddressDB(this);
        db= addressDB.getWritableDatabase();

        getSupportActionBar().setTitle("주소등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        // 아이디 읽어오기
        name = findViewById(R.id.name);
        tel = findViewById(R.id.tel);
        juso = findViewById(R.id.juso);

        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                final String strName = name.getText().toString();
                final String strTel = tel.getText().toString();
                final String strJuso = juso.getText().toString();
                if(strName.length()==0 || strTel.length() == 0 || strJuso.length() == 0){
                    Toast.makeText(InsertActivity.this, "내용을 입력하세요.", Toast.LENGTH_SHORT).show();
                }else{
                    AlertDialog.Builder box = new AlertDialog.Builder(InsertActivity.this);
                    box.setMessage("저장하시겠습니까?");
                    box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                        @Override
                        public void onClick(DialogInterface dialogInterface, int i) {
                            String sql = "insert into address(name, tel, juso,photo) values(";
                            sql += "'"+strName+"', ";
                            sql += "'"+strTel+"', ";
                            sql += "'"+strJuso+"', ";
                            sql += "'"+strPhoto+"')"; // new
                            db.execSQL(sql);
                            finish();
                        }
                    });
                    box.setNegativeButton("아니오",null);
                    box.show();
                }
            }
        });
.....



- src/main/java/com/example/ex03/MainActivity.java

.....
    public class MyAdapter extends CursorAdapter {
        public MyAdapter(Context context, Cursor c) {
            super(context, c);
        }

        @Override
        public View newView(Context context, Cursor cursor, ViewGroup viewGroup) {
            return getLayoutInflater().inflate(R.layout.item, viewGroup, false);
        }

        @Override
        public void bindView(View view, Context context, Cursor cursor) {
        	// new
            ImageView photo = view.findViewById(R.id.photo);
            String strPhoto = cursor.getString(1);
            if(cursor.getString(1).equals("")){
                photo.setImageResource(R.drawable.ic_baseline_person_24);
            }else{
                photo.setImageURI(Uri.parse(strPhoto));
            }
            TextView name = view.findViewById(R.id.name);
            name.setText(cursor.getString(2));
            TextView tel = view.findViewById(R.id.tel);
            tel.setText(cursor.getString(3));
            TextView juso = view.findViewById(R.id.juso);
            juso.setText(cursor.getString(4));
        }
    }
.....

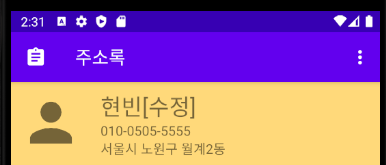

- 주소정보란에서 데이터를 수정하도록 하겠다. (update)

- src/main/java/com/example/ex03/ReadActivity.java

.....
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        edit = findViewById(R.id.add);
        edit.setImageResource(R.drawable.ic_add);

        getSupportActionBar().setTitle("주소정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        addressDB = new AddressDB(this);
        db = addressDB.getWritableDatabase();

        Intent intent = getIntent();
        id = intent.getIntExtra("id",0);
        cursor = db.rawQuery("select * from address where _id="+id,null);

        name = findViewById(R.id.name);
        tel = findViewById(R.id.tel);
        juso = findViewById(R.id.juso);

        if(cursor.moveToNext()){
            name.setText(cursor.getString(2));
            tel.setText(cursor.getString(3));
            juso.setText(cursor.getString(4));
        }
        // 수정버튼을 클릭한 경우
        edit.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                AlertDialog.Builder box = new AlertDialog.Builder(ReadActivity.this);
                box.setMessage("수정하실래요?");
                box.setNegativeButton("아니요",null);
                box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialogInterface, int i) {
                        String strName = name.getText().toString();
                        String strTel = tel.getText().toString();
                        String strJuso = juso.getText().toString();
                        String sql = "update address set name ='"+strName+"',";
                        sql += "tel='"+strTel+"',";
                        sql += "juso='"+strJuso+"'";
                        sql += "where _id="+id;
                        db.execSQL(sql);
                        finish();
                    }
                });
                box.show();
            }
        });

    }
.....



확인



- 삭제를 하도록 하겠다. (delete)

- src/main/res/menu/(new)read.xml



<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <item
        android:id="@+id/delete"
        android:title="삭제"
        android:icon="@drawable/ic_baseline_delete_24"
        app:showAsAction="always"/>
</menu>



- src/main/java/com/example/ex03/ReadActivity.java

.....
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
            case R.id.delete:
                AlertDialog.Builder box = new AlertDialog.Builder(this);
                box.setMessage("삭제하시겠습니까?");
                box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialogInterface, int i) {
                        String sql = "delete from address where _id="+id;
                        db.execSQL(sql);
                        finish();
                    }
                });
                box.setNegativeButton("아니오",null);
                box.show();
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.read,menu);
        return super.onCreateOptionsMenu(menu);
    }
}



확인

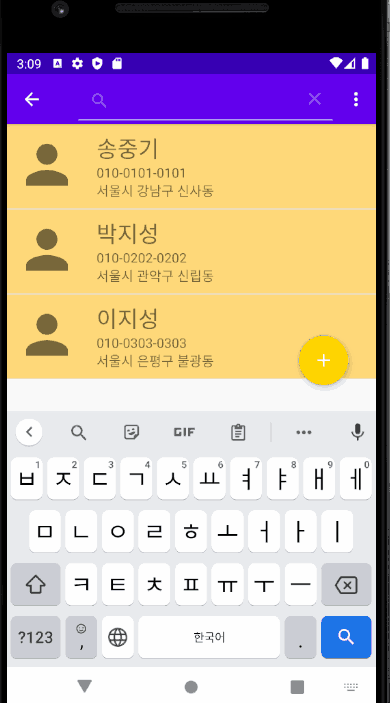

- 검색 해보도록 하겠다. (search)

- src/main/res/menu/menu_read.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <item
    android:id="@+id/id"
    android:title="최신순정렬"/>
    <item
        android:id="@+id/name"
        android:title="이름순정렬"/>
    <item
        android:id="@+id/tel"
        android:title="전화번호순순정렬"/>
    <item
        android:id="@+id/juso"
        android:title="주소순정렬"/>
    <item
        android:id="@+id/search"
        android:title="검색"
        android:icon="@android:drawable/ic_menu_search"
        app:showAsAction="always|collapseActionView"
        app:actionViewClass="android.widget.SearchView"
        />
</menu>



- src/main/java/com/example/ex03/MainActivity.java

.....
    @Override // new
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.menu_read, menu);
        MenuItem search = menu.findItem(R.id.search);
        SearchView searchView = (SearchView)search.getActionView();
        searchView.setOnQueryTextListener(new SearchView.OnQueryTextListener() {
            @Override
            public boolean onQueryTextSubmit(String query) {
                return false;
            }

            @Override
            public boolean onQueryTextChange(String newText) {
                String query = "'%" + newText + "%'";
                cursor = db.rawQuery("select * from address where name like "+query, null);
                myAdapter.changeCursor(cursor);
                return false;
            }
        });
        return super.onCreateOptionsMenu(menu);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        String sql = "select * from address order by _id desc"; // new
        switch (item.getItemId()){
            case R.id.id:
                sql = "select * from address order by _id";
                break;
            case R.id.name:
                sql = "select * from address order by name";
                break;
            case R.id.tel:
                sql = "select * from address order by tel";
                break;
            case R.id.juso:
                sql = "select * from address order by juso";
                break;
        }
        cursor = db.rawQuery(sql, null);
        myAdapter.changeCursor(cursor);

        return super.onOptionsItemSelected(item);
    }

    @Override
    protected void onRestart() {
        cursor = db.rawQuery("select * from address order by _id desc", null);
        myAdapter.changeCursor(cursor);
        super.onRestart();
    }
}



확인





- 전화번호를 누르면 통화가 되도록 하겠다.

- src/main/res/drawable/(new)ic_phone.xml

- src/main/res/layout/activity_insert.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".InsertActivity"
    android:layout_margin="30sp">

    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/photo"
        android:layout_width="250sp"
        android:layout_height="250sp"
        android:src="@drawable/ic_baseline_person_24"
        android:layout_centerHorizontal="true"
        />
    <EditText
        android:id="@+id/name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="이름"
        android:layout_below="@id/photo"
        android:layout_marginBottom="20sp"/>
    <EditText
        android:id="@+id/tel"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="전화번호"
        android:layout_below="@id/name"
        android:layout_marginBottom="20sp"/>
    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/phone"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_phone"
        android:layout_below="@id/name"
        android:layout_alignParentRight="true"
        app:civ_border_width="1sp"
        app:civ_border_color="#000000"/>
    <EditText
        android:id="@+id/juso"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="주소"
        android:layout_below="@id/tel"
        android:layout_marginBottom="20sp"/>
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_add"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:layout_marginRight="30sp"
        android:layout_marginBottom="30sp"
        android:backgroundTint="#FFD400"/>
</RelativeLayout>



- src/main/java/com/example/ex03/ReadActivity.java

.....
    @Override
    protected void onCreate(Bundle savedInstanceState) {
.....

        CircleImageView phone = findViewById(R.id.phone);
        phone.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(Intent.ACTION_DIAL, Uri.parse("tel:"+tel.getText().toString()));
                startActivity(intent);
            }
        });

    }
.....



확인



- src/main/java/com/example/ex03/InsertActivity.java

package com.example.ex03;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.DialogInterface;
import android.content.Intent;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.provider.MediaStore;
import android.provider.Telephony;
import android.view.MenuItem;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import de.hdodenhof.circleimageview.CircleImageView;

public class InsertActivity extends AppCompatActivity {

    EditText name,tel,juso;
    AddressDB addressDB;
    SQLiteDatabase db;
    CircleImageView photo;
    String strPhoto;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);
		// new
        CircleImageView phone = findViewById(R.id.phone);
        phone.setVisibility(View.INVISIBLE);
        .....



- src/main/res/layout/(new)drawer_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="300sp"
    android:layout_height="match_parent"
    android:background="#3F51B5"
    android:id="@+id/drawerView"
    android:orientation="vertical"
    android:layout_gravity="start"
    >
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="홍길동님"
        android:textSize="30sp"
        android:textColor="#FFFFFF"
        android:layout_gravity="center"
        android:layout_marginTop="150sp"
        android:layout_marginBottom="20sp"/>
    <de.hdodenhof.circleimageview.CircleImageView
        android:layout_width="200sp"
        android:layout_height="wrap_content"
        android:src="@drawable/img01"
        android:layout_gravity="center"/>
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="즐거운하루 보내세요."
        android:textSize="20sp"
        android:layout_gravity="center"
        android:layout_marginTop="20sp"
        android:textColor="#FFFFFF"
        />
</LinearLayout>



- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    android:background="#00BCD4"
    android:id="@+id/drawerLayout">
    <include layout="@layout/drawer_view"/>
        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent">
        <ListView
            android:id="@+id/list"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            />
        <com.google.android.material.floatingactionbutton.FloatingActionButton
            android:id="@+id/add"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_add"
            android:layout_alignParentBottom="true"
            android:layout_alignParentRight="true"
            android:layout_marginRight="30sp"
            android:layout_marginBottom="30sp"
            android:backgroundTint="#FFD400"/>
    </RelativeLayout>
</androidx.drawerlayout.widget.DrawerLayout>

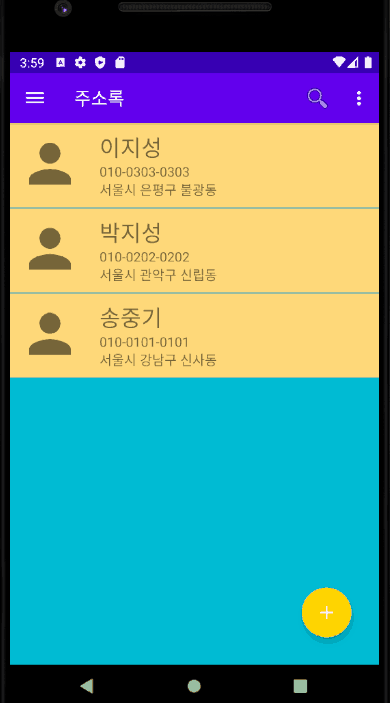

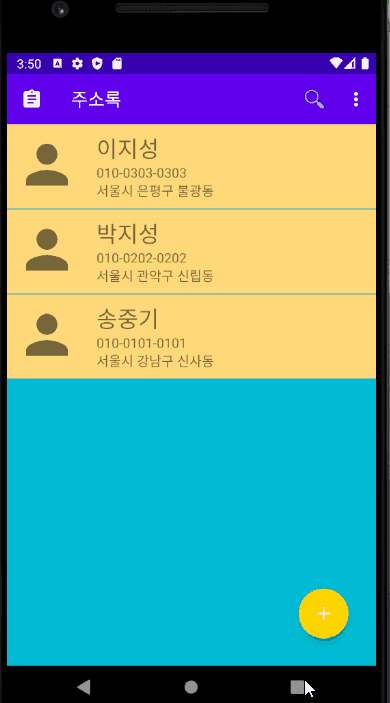

확인



- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    android:background="#00BCD4"
    android:id="@+id/drawerLayout">
    <include layout="@layout/drawer_view"/>
        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent">
        <ListView
            android:id="@+id/list"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            />
        <com.google.android.material.floatingactionbutton.FloatingActionButton
            android:id="@+id/add"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_add"
            android:layout_alignParentBottom="true"
            android:layout_alignParentRight="true"
            android:layout_marginRight="30sp"
            android:layout_marginBottom="30sp"
            android:backgroundTint="#FFD400"/>
    </RelativeLayout>
</androidx.drawerlayout.widget.DrawerLayout>



저작자표시

'ICIA 수업일지' 카테고리의 다른 글

2021.09.29 수업일지(안드로이드 개발 기초, Kakao API, Google API)  (0) 2021.09.29
2021.09.28 수업일지(안드로이드 기초, SQLite)  (0) 2021.09.28
2021.09.24 수업일지(안드로이드 개발 기초, SQLite)  (0) 2021.09.24
2021.09.23 수업일지(안드로이드 개발 기초, Activity, View)  (0) 2021.09.23
2021.09.17 수업일지(React.js을 이용한 블로그 개설)  (0) 2021.09.17

관련글

티스토리툴바
