2021.09.28 수업일지(안드로이드 기초, SQLite)

by 주성씨 2021. 9. 28.

- 어제 작업했었던 ex03에서 이미지 업로드를 해보겠다.

앱 사용 권한으로 인해서 어제 업로드를 못했었다. 사용자에 의한 권한 설정이 예전에 비해서 강화되었기 때문에 이를 설정해주는 코드를 생성하도록 하겠다.



- src/main/AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.ex03">
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
.....
</manifest>



- 어플이 최초 시작했을때 권한을 설정할것인지 alert하도록 하겠다.

- src/main/java/com/example/ex03/MainActivity.java

package com.example.ex03;

....

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {
    AddressDB addressDB;
    SQLiteDatabase db;
    Cursor cursor;
    ListView list;
    MyAdapter myAdapter;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
		// 최초 실행 시 권한여부 물음
        permissionCheck();
....
....
    public void permissionCheck(){
        String[] permissions= {Manifest.permission.READ_EXTERNAL_STORAGE,
                Manifest.permission.WRITE_EXTERNAL_STORAGE, Manifest.permission.CAMERA };
        ArrayList<String> checkPermission=new ArrayList<>();

        for(String permission:permissions){
            if(ActivityCompat.checkSelfPermission(this, permission) != PackageManager.PERMISSION_GRANTED){
                checkPermission.add(permission);
            }
        }
        if(checkPermission.size() > 0){
            String[] reqPermission=checkPermission.toArray(new String[checkPermission.size()]);
            ActivityCompat.requestPermissions(this, reqPermission,100);
        }
    }
}





- insert 시 사진이 들어간 경로를 sysout 해주도록 하겠다.

- src/main/java/com/example/ex03/InsertActivity.java

.....
        // 엘범실행
        photo = findViewById(R.id.photo);
        photo.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI);
                startActivityForResult(intent, 0);
            }
        });
    }
    // 엘범 실행 후 이쪽으로 옴
    @Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if(requestCode==0){
            photo.setImageURI(data.getData());
            Cursor cursor = getContentResolver().query(data.getData(), null, null, null, null);
            cursor.moveToFirst();
            strPhoto = cursor.getString(cursor.getColumnIndex(MediaStore.Images.Media.DATA));
            System.out.println("............" + strPhoto);
            cursor.close();
        }
    }
.....



- src/main/java/com/example/ex03/MainActivity.java

.....
    public class MyAdapter extends CursorAdapter {
        public MyAdapter(Context context, Cursor c) {
            super(context, c);
        }

        @Override
        public View newView(Context context, Cursor cursor, ViewGroup viewGroup) {
            return getLayoutInflater().inflate(R.layout.item, viewGroup, false);
        }

        @Override
        public void bindView(View view, Context context, Cursor cursor) {
            ImageView photo = view.findViewById(R.id.photo);
            String strPhoto = cursor.getString(1);
            if(strPhoto.equals("")){ // renew
                photo.setImageResource(R.drawable.ic_baseline_person_24);
            }else{
                photo.setImageBitmap(BitmapFactory.decodeFile(strPhoto));
            }
            TextView name = view.findViewById(R.id.name);
            name.setText(cursor.getString(2));
            TextView tel = view.findViewById(R.id.tel);
            tel.setText(cursor.getString(3));
            TextView juso = view.findViewById(R.id.juso);
            juso.setText(cursor.getString(4));
        }
    }
.....

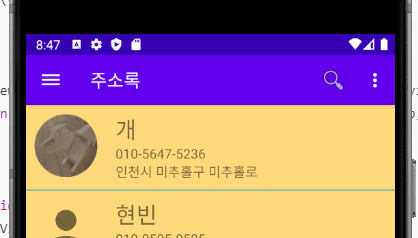

확인



- 새로운 프로젝트 ex04를 생성해주도록 하겠다.

- empty activity - named ex04 - save location data\android\ex04



- src/main/AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.ex04">
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>



- src/main/java/com/example/ex04/MainActivity.java

package com.example.ex04;

import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;

import android.Manifest;
import android.content.pm.PackageManager;
import android.os.Bundle;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        permissionCheck();
    }

    public void permissionCheck(){
        String[] permissions= {Manifest.permission.READ_EXTERNAL_STORAGE,
                Manifest.permission.WRITE_EXTERNAL_STORAGE, Manifest.permission.CAMERA };
        ArrayList<String> checkPermission=new ArrayList<>();

        for(String permission:permissions){
            if(ActivityCompat.checkSelfPermission(this, permission) != PackageManager.PERMISSION_GRANTED){
                checkPermission.add(permission);
            }
        }
        if(checkPermission.size() > 0){
            String[] reqPermission=checkPermission.toArray(new String[checkPermission.size()]);
            ActivityCompat.requestPermissions(this, reqPermission,100);
        }
    }
}



- 이제 엘범과 카메라를 이용가능하다.

- 메뉴 이미지 drawable에서 vector asset을 이용해 upload 하겠다.

- src/main/res/drawable/(new)ic_menu.xml

- src/main/java/com/example/ex04/MainActivity.java

package com.example.ex04;

import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;

import android.Manifest;
import android.content.pm.PackageManager;
import android.os.Bundle;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        permissionCheck();

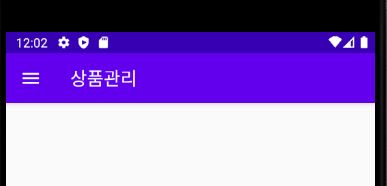

        getSupportActionBar().setTitle("상품관리");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);
    }
.....



확인

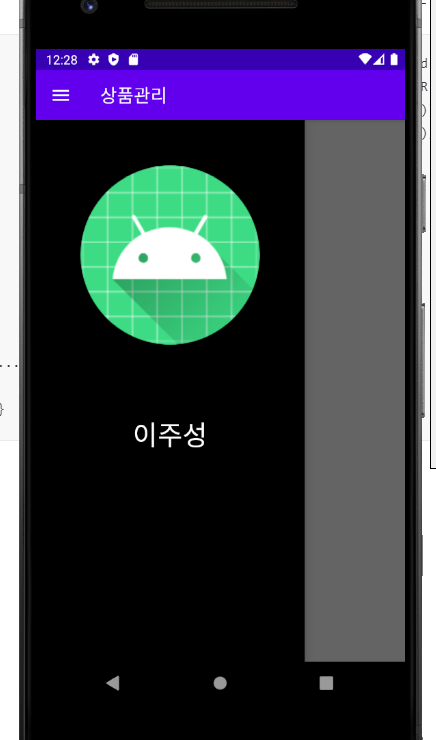

- 왼쪽 상단 메뉴 버튼 및 드래그를 통해서 layout이 뜨도록 하겠다.

- build.gradle

.....
dependencies {
.....
    implementation 'com.android.support:design:30.0.0'
    implementation 'de.hdodenhof:circleimageview:3.1.0'
}



- src/main/res/layout/(new)drawer_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="300sp"
    android:layout_height="match_parent"
    android:background="#000000"
    android:id="@+id/drawerView"
    android:orientation="vertical"
    android:layout_gravity="start">
    <de.hdodenhof.circleimageview.CircleImageView
        android:layout_width="200sp"
        android:layout_height="300sp"
        android:src="@mipmap/ic_launcher"
        android:layout_gravity="center_horizontal"/>
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:textColor="#FFFFFF"
        android:textSize="30sp"
        android:text="이주성"
        android:layout_gravity="center_horizontal"
        android:layout_marginTop="30sp"/>
</LinearLayout>



- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity"
    android:id="@+id/drawerLayout">
    <include layout="@layout/drawer_view"/>

<TextView
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Hello World!"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toRightOf="parent"
    app:layout_constraintTop_toTopOf="parent" />

</androidx.drawerlayout.widget.DrawerLayout>



- src/main/java/com/example/ex04/MainActivity.java

package com.example.ex04;

.....

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
.....
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                DrawerLayout drawerLayout = findViewById(R.id.drawerLayout);
                LinearLayout drawerView = findViewById(R.id.drawerView);
                if(drawerLayout.isDrawerOpen(drawerView)){
                    drawerLayout.closeDrawer(drawerView);
                }else{
                    drawerLayout.openDrawer(drawerView);
                }
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    public void permissionCheck(){
.....
    }
}



확인





-

- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity"
    android:id="@+id/drawerLayout">
    <include layout="@layout/drawer_view"/>
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:padding="20sp">
        <ListView
            android:id="@+id/list"
            android:layout_width="match_parent"
            android:layout_height="match_parent" />
        <com.google.android.material.floatingactionbutton.FloatingActionButton
            android:id="@+id/add"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_baseline_add_24"
            android:backgroundTint="#000000"
            app:borderWidth="0sp"
            android:layout_alignParentBottom="true"
            android:layout_alignParentRight="true"/>
    </RelativeLayout>
</androidx.drawerlayout.widget.DrawerLayout>



- src/main/res/drawable/(new)ic_baseline_insert_photo_24.xml

- src/main/res/layout/(new)item.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:background="#FFEB3B"
    android:padding="10sp"
    android:layout_margin="10sp">
    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/photo"
        android:layout_width="70sp"
        android:layout_height="70sp"
        android:src="@drawable/ic_baseline_insert_photo_24"
        app:civ_border_width="1sp"
        app:civ_border_color="#000000"
        android:layout_marginRight="20sp"/>
    <TextView
        android:id="@+id/name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="상품명"
        android:textSize="20sp"
        android:layout_toRightOf="@id/photo"
        android:textStyle="bold"/>
    <TextView
        android:id="@+id/company"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="제조사"
        android:textSize="15sp"
        android:layout_toRightOf="@id/photo"
        android:layout_below="@id/name"/>
    <TextView
        android:id="@+id/price"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="상품가격"
        android:textSize="15sp"
        android:layout_toRightOf="@id/photo"
        android:layout_below="@id/company"/>
</RelativeLayout>



- db를 생성하는 클래스를 만들도록 하겠다.

- src/main/java/com/example/ex04/(new)ProductDB.java

package com.example.ex04;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;

import androidx.annotation.Nullable;

public class ProductDB extends SQLiteOpenHelper {
    public ProductDB(@Nullable Context context) {
        super(context, "product.db", null, 1);
    }

    @Override
    public void onCreate(SQLiteDatabase db) {
        String sql = "create table product(_id integer primary key autoincrement, name text, company text, price integer,photo text)";
        db.execSQL(sql);
        sql = "insert into product(name,company, price, photo) values('세탁기', '엘지', 10000000)";
        db.execSQL(sql);
        sql = "insert into product(name,company, price, photo) values('냉장고', '대우', 15000000)";
        db.execSQL(sql);
        sql = "insert into product(name,company, price, photo) values('스타일러', '삼성', 12000000)";
        db.execSQL(sql);
    }

    @Override
    public void onUpgrade(SQLiteDatabase sqLiteDatabase, int i, int i1) {

    }
}



- src/main/java/com/example/ex04/MainActivity.java

package com.example.ex04;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;
import androidx.drawerlayout.widget.DrawerLayout;

import android.Manifest;
import android.content.Context;
import android.content.pm.PackageManager;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.CursorAdapter;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.TextView;

import java.text.DecimalFormat;
import java.text.SimpleDateFormat;
import java.util.ArrayList;

import de.hdodenhof.circleimageview.CircleImageView;

public class MainActivity extends AppCompatActivity {
    ProductDB productDB;
    SQLiteDatabase db;
    Cursor cursor;
    MyAdapter myAdapter;
    ListView list;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        permissionCheck();

        getSupportActionBar().setTitle("상품관리");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);

        productDB = new ProductDB(this);
        db=productDB.getWritableDatabase();
        cursor = db.rawQuery("select * from product order by _id desc", null);

        myAdapter = new MyAdapter(this,cursor);
        list=findViewById(R.id.list);
        list.setAdapter(myAdapter);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                DrawerLayout drawerLayout = findViewById(R.id.drawerLayout);
                LinearLayout drawerView = findViewById(R.id.drawerView);
                if(drawerLayout.isDrawerOpen(drawerView)){
                    drawerLayout.closeDrawer(drawerView);
                }else{
                    drawerLayout.openDrawer(drawerView);
                }
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    public class MyAdapter extends CursorAdapter{

        public MyAdapter(Context context, Cursor c) {
            super(context, c);
        }

        @Override
        public View newView(Context context, Cursor cursor, ViewGroup viewGroup) {
            return getLayoutInflater().inflate(R.layout.item,viewGroup,false);
        }

        @Override
        public void bindView(View view, Context context, Cursor cursor) {
            CircleImageView photo = view.findViewById(R.id.photo);
            photo.setImageResource(R.drawable.ic_baseline_insert_photo_24);
            TextView name = view.findViewById(R.id.name);
            name.setText(cursor.getString(1));
            TextView company = view.findViewById(R.id.company);
            company.setText(cursor.getString(2));
            TextView price = view.findViewById(R.id.price);
            DecimalFormat df = new DecimalFormat("#,###원");
            int intPrice = cursor.getInt(3);
            String strPrice = df.format(intPrice);
            price.setText(strPrice);
        }
    }

    public void permissionCheck(){
        String[] permissions= {Manifest.permission.READ_EXTERNAL_STORAGE,
                Manifest.permission.WRITE_EXTERNAL_STORAGE, Manifest.permission.CAMERA };
        ArrayList<String> checkPermission=new ArrayList<>();

        for(String permission:permissions){
            if(ActivityCompat.checkSelfPermission(this, permission) != PackageManager.PERMISSION_GRANTED){
                checkPermission.add(permission);
            }
        }
        if(checkPermission.size() > 0){
            String[] reqPermission=checkPermission.toArray(new String[checkPermission.size()]);
            ActivityCompat.requestPermissions(this, reqPermission,100);
        }
    }
}

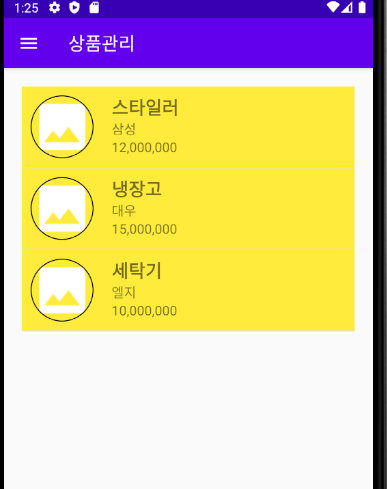

확인

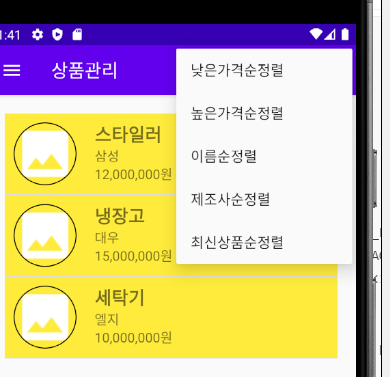

- 홈에서 오른쪽 상단에 메뉴 버튼을 통해서 상품을 정렬해줄 수 있도록 하겠다.

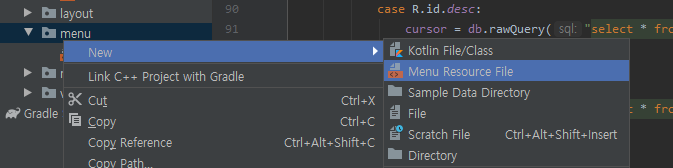

- src/main/res/(new)menu/(new)main.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@+id/asc"
        android:title="낮은가격순정렬"/>
    <item
        android:id="@+id/desc"
        android:title="높은가격순정렬"/>
    <item
        android:id="@+id/name"
        android:title="이름순정렬"/>
    <item
        android:id="@+id/company"
        android:title="제조사순정렬"/>
    <item
        android:id="@+id/id"
        android:title="최신상품순정렬"/>
</menu>



- src/main/java/com/example/ex04/MainActivity.java

.....
    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        return super.onCreateOptionsMenu(menu);
    }

    public void permissionCheck(){
        String[] permissions= {Manifest.permission.READ_EXTERNAL_STORAGE,
                Manifest.permission.WRITE_EXTERNAL_STORAGE, Manifest.permission.CAMERA };
        ArrayList<String> checkPermission=new ArrayList<>();

        for(String permission:permissions){
            if(ActivityCompat.checkSelfPermission(this, permission) != PackageManager.PERMISSION_GRANTED){
                checkPermission.add(permission);
            }
        }
        if(checkPermission.size() > 0){
            String[] reqPermission=checkPermission.toArray(new String[checkPermission.size()]);
            ActivityCompat.requestPermissions(this, reqPermission,100);
        }
    }
}



확인





- 이제 특정 id를 통해서 정렬해주는 switch문을 생성하도록 하겠다.

- src/main/java/com/example/ex04/MainActivity.java

.....
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                DrawerLayout drawerLayout = findViewById(R.id.drawerLayout);
                LinearLayout drawerView = findViewById(R.id.drawerView);
                if(drawerLayout.isDrawerOpen(drawerView)){
                    drawerLayout.closeDrawer(drawerView);
                }else{
                    drawerLayout.openDrawer(drawerView);
                }
                break;
            case R.id.desc:
                cursor = db.rawQuery("select * from product order by price desc", null);
                myAdapter.changeCursor(cursor);
                break;
            case R.id.asc:
                cursor = db.rawQuery("select * from product order by price", null);
                myAdapter.changeCursor(cursor);
                break;
            case R.id.name:
                cursor = db.rawQuery("select * from product order by name", null);
                myAdapter.changeCursor(cursor);
                break;
            case R.id.company:
                cursor = db.rawQuery("select * from product order by company", null);
                myAdapter.changeCursor(cursor);
                break;
            case R.id.id:
                cursor = db.rawQuery("select * from product order by _id", null);
                myAdapter.changeCursor(cursor);
                break;
        }
        return super.onOptionsItemSelected(item);
    }
.....

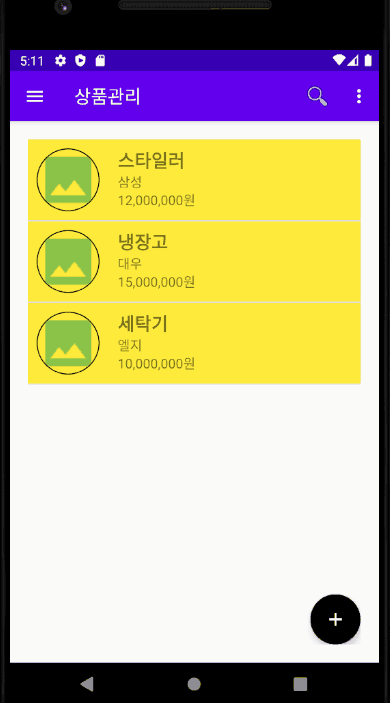

확인



- 이제 검색어를 통해서 아이템을 정렬해보겠다.

- 우선 아이콘을 생성해주도록 하겠다.

- src/main/res/menu/main.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <item
        android:id="@+id/asc"
        android:title="낮은가격순정렬"/>
    <item
        android:id="@+id/desc"
        android:title="높은가격순정렬"/>
    <item
        android:id="@+id/name"
        android:title="이름순정렬"/>
    <item
        android:id="@+id/company"
        android:title="제조사순정렬"/>
    <item
        android:id="@+id/id"
        android:title="최신상품순정렬"/>
    <item
        android:id="@+id/search"
        android:title="search"
        android:icon="@android:drawable/ic_menu_search"
        app:showAsAction="always|collapseActionView"
        app:actionViewClass="android.widget.SearchView"/>
</menu>



- 글자가 입력될때 search 해주도록 하겠다.

- src/main/java/com/example/ex04/MainActivity.java

.....
    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        MenuItem search = menu.findItem(R.id.search);
        SearchView searchView = (SearchView)search.getActionView();
        searchView.setOnQueryTextListener(new SearchView.OnQueryTextListener() {
            @Override
            public boolean onQueryTextSubmit(String s) {
                return false;
            }

            @Override
            public boolean onQueryTextChange(String s) {
                String query = "'%"+ s +"%'";
                cursor = db.rawQuery("select * from product where name like "+ query + " or company like "+ query, null);
                myAdapter.changeCursor(cursor);
                return false;
            }
        });
        return super.onCreateOptionsMenu(menu);
    }
.....

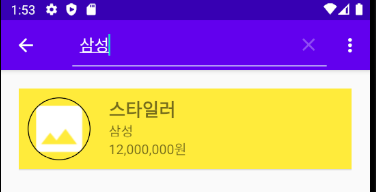

확인

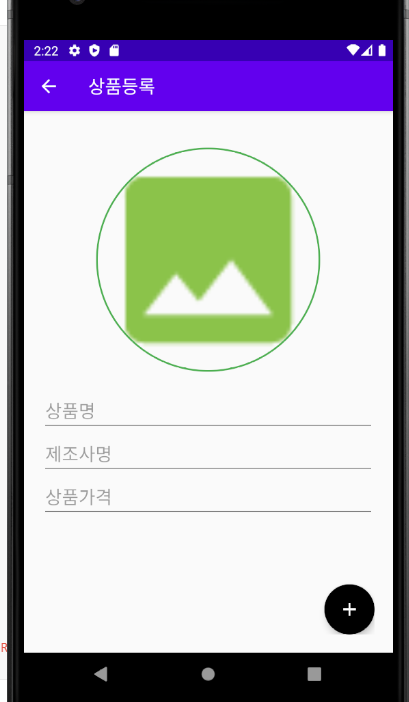

- 상품등록 레이아웃을 만들고 뒤로가기 버튼을 활성화해주겠다.

- src/main/java/com/example/ex04/(new)InsertActivity.java

package com.example.ex04;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.MenuItem;

public class InsertActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("상품등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



- src/main/java/com/example/ex04/MainActivity.java

package com.example.ex04;

.....

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import java.text.DecimalFormat;
import java.util.ArrayList;

import de.hdodenhof.circleimageview.CircleImageView;

public class MainActivity extends AppCompatActivity {
    ProductDB productDB;
    SQLiteDatabase db;
    Cursor cursor;
    MyAdapter myAdapter;
    ListView list;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        permissionCheck();

        getSupportActionBar().setTitle("상품관리");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);

        productDB = new ProductDB(this);
        db=productDB.getWritableDatabase();
        cursor = db.rawQuery("select * from product order by _id desc", null);

        myAdapter = new MyAdapter(this,cursor);
        list=findViewById(R.id.list);
        list.setAdapter(myAdapter);

        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(MainActivity.this, InsertActivity.class);
                startActivity(intent);
            }
        });
    }

.....



- src/main/res/layout/activity_insert.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".InsertActivity"
    android:padding="20sp">
    <de.hdodenhof.circleimageview.CircleImageView
        android:id="@+id/photo"
        android:layout_width="250sp"
        android:layout_height="250sp"
        android:src="@drawable/ic_baseline_insert_photo_24"
        app:civ_border_width="2sp"
        app:civ_border_color="#4CAF50"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="20sp"
        android:layout_marginTop="20sp"/>
    <EditText
        android:id="@+id/name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="상품명"
        android:textSize="20sp"
        android:layout_below="@id/photo"/>
    <EditText
        android:id="@+id/company"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="제조사명"
        android:textSize="20sp"
        android:layout_below="@id/name"/>
    <EditText
        android:id="@+id/price"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="상품가격"
        android:textSize="20sp"
        android:inputType="number"
        android:layout_below="@id/company"/>
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_baseline_add_24"
        android:backgroundTint="#000000"
        app:borderWidth="0sp"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"/>
</RelativeLayout>

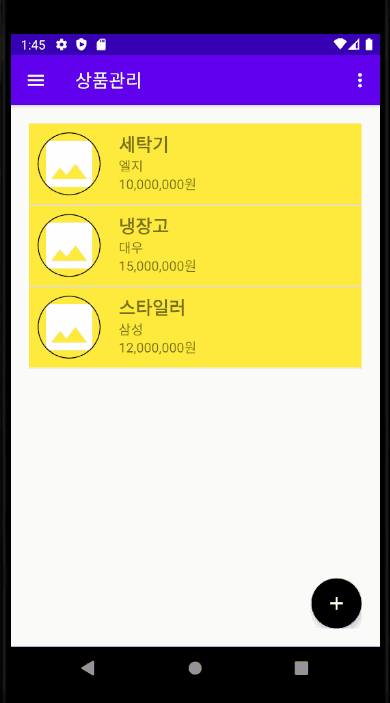

확인





- insert에서 이미지를 클릭해 엘범을 오픈하고 이미지를 등록해주도록 하겠다.

- src/main/java/com/example/ex04/InsertActivity.java

package com.example.ex04;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.database.Cursor;
import android.os.Bundle;
import android.provider.MediaStore;
import android.view.MenuItem;
import android.view.View;

import de.hdodenhof.circleimageview.CircleImageView;

public class InsertActivity extends AppCompatActivity {
    CircleImageView photo;
    String strPhoto;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("상품등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        photo = findViewById(R.id.photo);
        photo.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI);
                startActivityForResult(intent,0);
            }
        });
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if(requestCode==0){
            photo.setImageURI(data.getData());
            Cursor cursor = getContentResolver().query(data.getData(), null, null, null, null);
            cursor.moveToFirst();
            strPhoto = cursor.getString(cursor.getColumnIndex(MediaStore.Images.Media.DATA));
            System.out.println("............" + strPhoto);
            cursor.close();
        }
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



이미지 데이터 경로 확인



- src/main/java/com/example/ex04/InsertActivity.java

.....
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("상품등록");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        productDB = new ProductDB(this);
        db=productDB.getWritableDatabase();

        photo = findViewById(R.id.photo);
        photo.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI);
                startActivityForResult(intent,0);
            }
        });

        name = findViewById(R.id.name);
        company = findViewById(R.id.company);
        price = findViewById(R.id.price);

        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                AlertDialog.Builder box = new AlertDialog.Builder(InsertActivity.this);
                box.setMessage("수정하실래요?");
                box.setNegativeButton("아니요",null);
                box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialogInterface, int i) {
                        String strName = name.getText().toString();
                        String strCompany = company.getText().toString();
                        String strPrice = price.getText().toString();
                        String sql = "insert into product(name, company, price, photo) values(";
                        sql+="'"+strName+"',";
                        sql+="'"+strCompany+"',";
                        sql+= strPrice+",";
                        sql+="'"+strPhoto+"')";
                        db.execSQL(sql);
                        finish();
                    }
                });
                box.show();
            }
        });
    }
.....



- src/main/java/com/example/ex04/MainActivity.java

.....
    @Override
    protected void onRestart() {
        String sql = "select * from product";
        String order = " order by _id desc";
        cursor = db.rawQuery(sql+order,null);
        myAdapter.changeCursor(cursor);
        super.onRestart();
    }
}

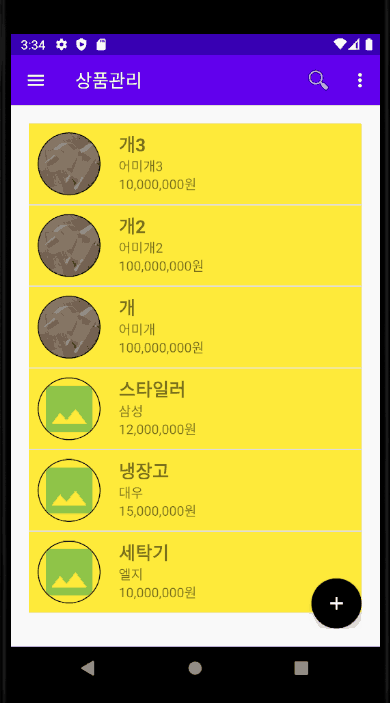

확인



- 상품을 클릭하면 정보를 읽어오는 액티비티를 만들겠다.

- src/main/java/com/example/ex04/ReadActivity.java

package com.example.ex04;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.MenuItem;

public class ReadActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_read);

        getSupportActionBar().setTitle("상품정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch(item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }
}



- src/main/java/com/example/ex04/MainActivity.java

.....
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        permissionCheck();

        getSupportActionBar().setTitle("상품관리");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);

        productDB = new ProductDB(this);
        db=productDB.getWritableDatabase();
        cursor = db.rawQuery("select * from product order by _id desc", null);

        myAdapter = new MyAdapter(this,cursor);
        list=findViewById(R.id.list);
        list.setAdapter(myAdapter);
        list.setOnItemClickListener(new AdapterView.OnItemClickListener() { // new
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                Intent intent = new Intent(MainActivity.this, ReadActivity.class);
                intent.putExtra("id",cursor.getInt(0));
                startActivity(intent);
            }
        });

        FloatingActionButton add = findViewById(R.id.add);
        add.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(MainActivity.this, InsertActivity.class);
                startActivity(intent);
            }
        });
    }
.....



- src/main/java/com/example/ex04/ReadActivity.java

package com.example.ex04;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.appcompat.app.AlertDialog;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.graphics.BitmapFactory;
import android.os.Bundle;
import android.provider.MediaStore;
import android.view.MenuItem;
import android.view.View;
import android.widget.EditText;

import com.google.android.material.floatingactionbutton.FloatingActionButton;

import de.hdodenhof.circleimageview.CircleImageView;

public class ReadActivity extends AppCompatActivity {
    ProductDB productDB;
    SQLiteDatabase db;
    Cursor cursor;
    EditText name, company, price;
    CircleImageView photo;
    String strPhoto;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_insert);

        getSupportActionBar().setTitle("상품정보");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        name = findViewById(R.id.name);
        company = findViewById(R.id.company);
        price = findViewById(R.id.price);
        photo = findViewById(R.id.photo);
        photo.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                Intent intent = new Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI);
                startActivityForResult(intent,0);
            }
        });
        Intent intent = getIntent();
        int id = intent.getIntExtra("id",0);

        productDB = new ProductDB(this);
        db = productDB.getWritableDatabase();

        cursor = db.rawQuery("select * from product where _id="+id,null);
        if(cursor.moveToNext()){
            name.setText(cursor.getString(1));
            company.setText(cursor.getString(2));
            price.setText(cursor.getString(3));
            if(cursor.getString(4)==null || cursor.getString(4).equals("")){
                photo.setImageResource(R.drawable.ic_baseline_insert_photo_24);
            }else{
                // 비트맵으로 변환해서 데이터를 넣는다.
                photo.setImageBitmap(BitmapFactory.decodeFile(cursor.getString(4)));
            }
        }

        FloatingActionButton edit = findViewById(R.id.add);
        edit.setImageResource(R.drawable.ic_baseline_edit_24);
        edit.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                AlertDialog.Builder box = new AlertDialog.Builder(ReadActivity.this);
                box.setMessage("수정하시겠습니까?");
                box.setNegativeButton("아니오",null);
                box.setPositiveButton("예", null);
                box.show();
            }
        });
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch(item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if(requestCode==0){
            photo.setImageURI(data.getData());
            Cursor cursor = getContentResolver().query(data.getData(), null, null, null, null);
            cursor.moveToFirst();
            strPhoto = cursor.getString(cursor.getColumnIndex(MediaStore.Images.Media.DATA));
            System.out.println("............" + strPhoto);
            cursor.close();
        }
    }

}

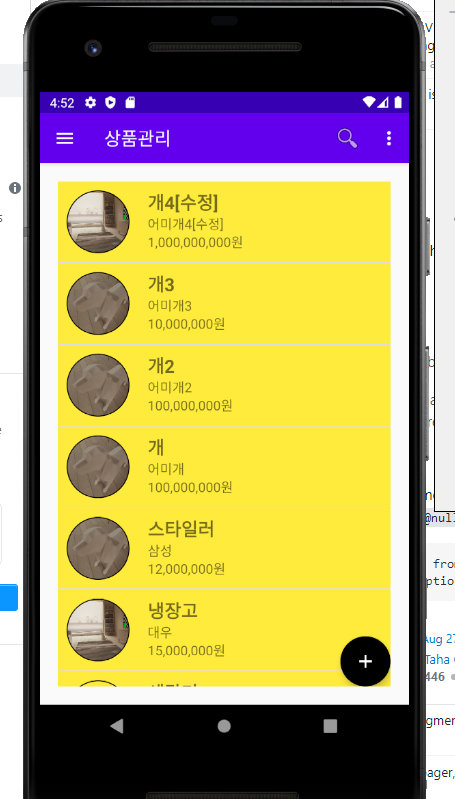

확인





- 이제 삭제작업을 하도록 하겠다.

- src/main/res/menu/(new)read.xml

생성 경로



<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <item
        android:title="삭데"
        android:id="@+id/delete"
        android:icon="@drawable/ic_baseline_delete_24"
        app:showAsAction="always"/>
</menu>



- src/main/java/com/example/ex04/ReadActivity.java

.....
    @Override // new
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.read,menu);
        return super.onCreateOptionsMenu(menu);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch(item.getItemId()){
            case android.R.id.home:
                finish();
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, @Nullable Intent data) {
        super.onActivityResult(requestCode, resultCode, data);
        if(requestCode==0){
            photo.setImageURI(data.getData());
            Cursor cursor = getContentResolver().query(data.getData(), null, null, null, null);
            cursor.moveToFirst();
            strPhoto = cursor.getString(cursor.getColumnIndex(MediaStore.Images.Media.DATA));
            System.out.println("............" + strPhoto);
            cursor.close();
        }
    }

}

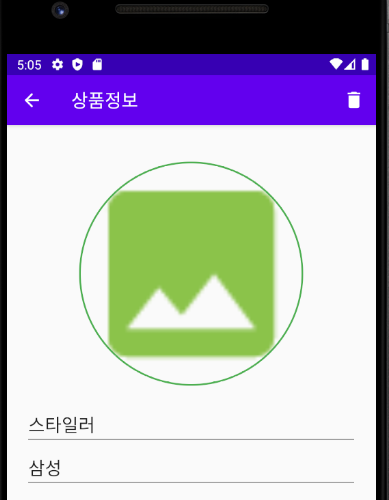

확인





- 이제 삭제할 수 있는 쿼리문을 생성하고 실행할 수 있도록 하겠다.

- src/main/java/com/example/ex04/ReadActivity.java

.....
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch(item.getItemId()){
            case android.R.id.home:
                finish();
                break;
            case R.id.delete: // new
                AlertDialog.Builder box = new AlertDialog.Builder(this);
                box.setMessage("삭제하시겠습니까?");
                box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                    @Override
                    public void onClick(DialogInterface dialogInterface, int i) {
                        String sql = "delete from product where _id="+id;
                        db.execSQL(sql);
                        finish();
                    }
                });
                box.setNegativeButton("아니요", null);
                box.show();
        }
        return super.onOptionsItemSelected(item);
    }
.....





확인

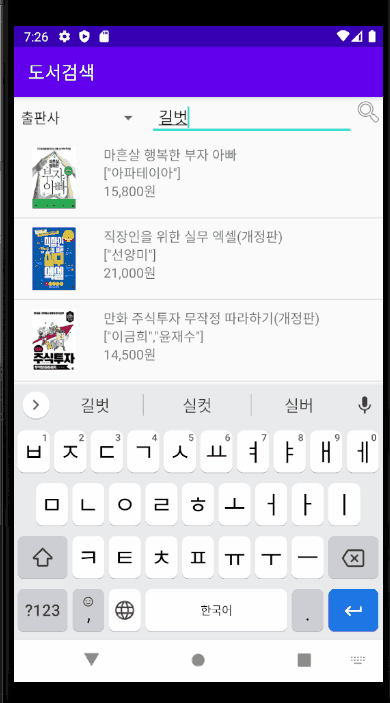

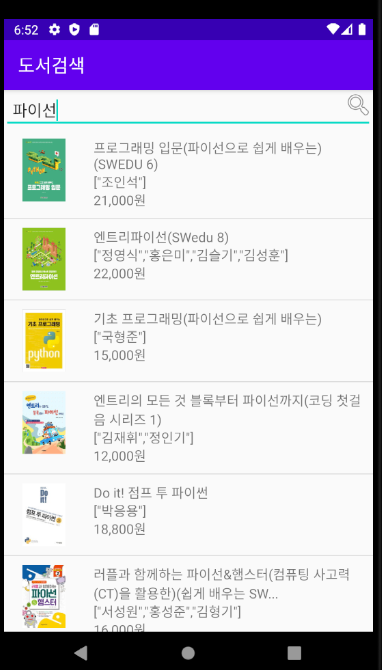

- 카카오 검색 API를 이용해 도서검색 APP을 만들어보도록 하겠다.

- src/main/java/com/example/ex04/(new)BookActivity.java



- src/main/java/com/example/ex04/(new)Kakao.java - java class

package com.example.ex04;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.URL;

public class Kakao {
    public static String connect(String apiURL) {
        try {
            URL url = new URL(apiURL);
            HttpURLConnection con = (HttpURLConnection)url.openConnection();
            con.setRequestMethod("GET");
            con.setRequestProperty("Authorization", "KakaoAK 'REST API 키'");
            int responseCode = con.getResponseCode();
            BufferedReader br;
            if(responseCode==200) { // 정상 호출인 경우
                br = new BufferedReader(new InputStreamReader(con.getInputStream(), "UTF-8"));
            } else { //에러 발생가 발생한 경우
                br = new BufferedReader(new InputStreamReader(con.getErrorStream()));
            }
            String inputLine;
            StringBuffer response = new StringBuffer();
            while ((inputLine = br.readLine()) != null) {
                response.append(inputLine);
            }
            br.close();
            System.out.println(response.toString());
            return response.toString();
        }catch (Exception e) {
            return e.toString();
        }
    }
}



- 인터넷을 통해서 카카오 서버에 접근하기 위해서 권한 처리를 해준다.

- book액티비티를 시작 액티비티로 설정해준다.

- src/main/AndroidManifest.xml

.....
    <uses-permission android:name="android.permission.INTERNET"/>
.....
        <activity android:name=".BookActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
.....



- src/main/java/com/example/ex04/BookActivity.java

package com.example.ex04;

import androidx.appcompat.app.AppCompatActivity;

import android.os.AsyncTask;
import android.os.Bundle;

public class BookActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_book);
        new KakaoThread().execute();
    }

    // 카카오 서버 접속을 위한 thread 설정
    class KakaoThread extends AsyncTask<String, String, String> {

        @Override
        protected String doInBackground(String... strings) {
            String result = Kakao.connect("https://dapi.kakao.com/v3/search/book?target=title&query=안드로이드");
            return null;
        }
    }

}

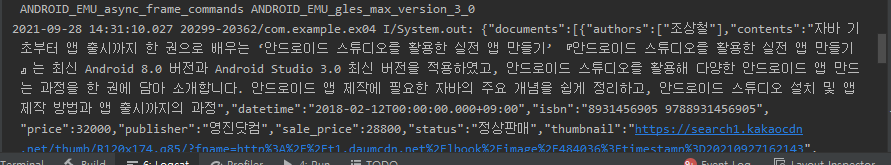

확인



- 데이터 파싱작업을 해주도록 하겠다.

파싱? : 파싱은 어떤 페이지(문서, html 등)에서 내가 원하는 데이터를 특정 패턴이나 순서로 추출해 가공하는 것을 말한다. 이러한 파서(parser) 역할을 하는 컴퓨터가 구문 트리(parse tree)로 재구성하는 구문 분석 과정을 뜻한다.



- src/main/java/com/example/ex04/BookActivity.java

package com.example.ex04;

import androidx.appcompat.app.AppCompatActivity;

import android.os.AsyncTask;
import android.os.Bundle;

import org.json.JSONArray;
import org.json.JSONObject;

import java.util.ArrayList;
import java.util.HashMap;

public class BookActivity extends AppCompatActivity {
    JSONArray jsonArray = new JSONArray();
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_book);
        new KakaoThread().execute();
    }

    // 카카오 서버 접속을 위한 thread 설정
    class KakaoThread extends AsyncTask<String, String, String> {

        @Override
        protected String doInBackground(String... strings) {
            String result = Kakao.connect("https://dapi.kakao.com/v3/search/book?target=title&query=안드로이드");

            // 데이터 파싱
            try {
                jsonArray = new JSONObject(result).getJSONArray("documents");
                for(int i = 0; i<jsonArray.length(); i++){
                    JSONObject obj = jsonArray.getJSONObject(i);
                    System.out.println(obj.getString("title")+obj.getString("authors"));
                }
            }catch (Exception e){
                System.out.println("오류 : "+e.toString());
            }

            return null;
        }
    }

}



- src/main/res/layout/activity_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".BookActivity">
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />
</RelativeLayout>



- src/main/res/layout/(new)item_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:padding="10sp">
    <ImageView
        android:id="@+id/image"
        android:layout_width="70sp"
        android:layout_height="70sp"
        android:src="@mipmap/ic_launcher"
        android:layout_marginRight="20sp"/>
    <TextView
    android:id="@+id/title"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="책제목"
    android:layout_toRightOf="@id/image"
        android:textSize="15sp"
    />
    <TextView
        android:id="@+id/authors"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="책저자"
        android:layout_toRightOf="@id/image"
        android:layout_below="@id/title"
        android:textSize="15sp"
        />
    <TextView
        android:id="@+id/price"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="책가격"
        android:layout_toRightOf="@id/image"
        android:layout_below="@id/authors"
        android:textSize="15sp"
        />
</RelativeLayout>



- 라이브러리 추가

- build.gradle

    implementation 'com.squareup.picasso:picasso:2.5.2'



- 내꺼

- src/main/java/com/example/ex04/BookActivity.java

package com.example.ex04;

import androidx.appcompat.app.AppCompatActivity;

import android.os.AsyncTask;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import com.squareup.picasso.Picasso;

import org.json.JSONArray;
import org.json.JSONObject;
import org.w3c.dom.Text;

import java.text.DecimalFormat;
import java.util.ArrayList;
import java.util.HashMap;

public class BookActivity extends AppCompatActivity {
    JSONArray jsonArray = new JSONArray();
    BookAdapter bookAdapter = new BookAdapter();
    ListView list;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_book);

        list = findViewById(R.id.list);
        new KakaoThread().execute();
    }

    // 카카오 서버 접속을 위한 thread 설정
    class KakaoThread extends AsyncTask<String, String, String> {

        @Override
        protected String doInBackground(String... strings) {
            String result = Kakao.connect("https://dapi.kakao.com/v3/search/book?target=title&query=안드로이드");

            // 데이터 파싱
            try {
                jsonArray = new JSONObject(result).getJSONArray("documents");
                for(int i = 0; i<jsonArray.length(); i++){
                    System.out.println("길이 :"+jsonArray.length());
                    JSONObject obj = jsonArray.getJSONObject(i);
                    System.out.println(obj.getString("title")+obj.getString("authors"));
                }
            }catch (Exception e){
                System.out.println("오류 : "+e.toString());
            }

            return null;
        }

        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            list.setAdapter(bookAdapter);
        }
    }

    // 책 어뎁터
    public class BookAdapter extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int position, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_book, viewGroup, false);
            TextView title = viewGroup.findViewById(R.id.title);
            TextView authors = viewGroup.findViewById(R.id.authors);
            TextView price = viewGroup.findViewById(R.id.price);
            ImageView image = viewGroup.findViewById(R.id.image);
            try {
                JSONObject obj = jsonArray.getJSONObject(position);
                title.setText(obj.getString("title"));
                authors.setText(obj.getString("authors"));
                DecimalFormat df = new DecimalFormat("#,###원");
                price.setText(df.format(obj.getInt("price")));
                if(obj.getString("thumbnail")==null || obj.getString("thumbnail").equals("")){
                    image.setImageResource(R.drawable.ic_launcher_background);
                }else{
                    Picasso.with(BookActivity.this).load(obj.getString("thumbnail")).into(image);
                }
            }catch (Exception e){
                System.out.println("오류 : "+e.toString());
            }
            return view;
        }
    }
}



- 선생님꺼

public class BookActivity extends AppCompatActivity {
    //ArrayList<HashMap<String,Object>> array=new ArrayList<>();
    JSONArray jArray=new JSONArray();
    BookAdapter bookAdapter = new BookAdapter();
    ListView list;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_book);

        list=findViewById(R.id.list);
        new KakaoThread().execute();
    }

    //카카오서버 접속을위한 쓰레드
    class KakaoThread extends AsyncTask<String, String, String> {
        @Override
        protected String doInBackground(String... strings) {
            String result=Kakao.connect("https://dapi.kakao.com/v3/search/book?target=title&query=자바");
            //데이타파싱
            try {
                jArray = new JSONObject(result).getJSONArray("documents");
                for(int i=0; i<jArray.length(); i++){
                    JSONObject obj=jArray.getJSONObject(i);
                    System.out.println(obj.getString("title") + obj.getString("authors"));
                }
            }catch (Exception e){
                System.out.println("오류:" + e.toString());
            }
            return null;
        }

        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            list.setAdapter(bookAdapter);
        }
    }

    //책어댑터
    public class BookAdapter extends BaseAdapter{
        @Override
        public int getCount() {
            return jArray.length();
        }

        @Override
        public Object getItem(int position) {
            return null;
        }

        @Override
        public long getItemId(int position) {
            return 0;
        }

        @Override
        public View getView(int position, View view, ViewGroup parent) {
            view = getLayoutInflater().inflate(R.layout.item_book, parent, false);
            TextView title=view.findViewById(R.id.title);
            TextView authors=view.findViewById(R.id.authors);
            TextView price=view.findViewById(R.id.price);
            ImageView image=view.findViewById(R.id.image);
            try {
                JSONObject obj = jArray.getJSONObject(position);
                title.setText(obj.getString("title"));
                authors.setText(obj.getString("authors"));
                DecimalFormat df=new DecimalFormat("#,###원");
                price.setText(df.format(obj.getInt("price")));
                if(obj.getString("thumbnail")==null || obj.getString("thumbnail").equals("")){
                    image.setImageResource(R.drawable.ic_launcher_background);
                }else{
                    Picasso.with(BookActivity.this).load(obj.getString("thumbnail")).into(image);
                }
            }catch(Exception e){
                System.out.println("오류:" + e.toString());
            }
            return view;
        }
    }
}

비교필



- 이제 검색을 통해서 데이터를 불러오도록 하겠다.

- src/main/res/layout/activity_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".BookActivity">
    <EditText
        android:id="@+id/query"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="검색어 입력"
        android:padding="10sp"/>
    <ImageView
        android:id="@+id/search"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@android:drawable/ic_menu_search"
        android:layout_alignParentRight="true"/>
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_below="@id/query"/>
</RelativeLayout>



- src/main/java/com/example/ex04/BookActivity.java

.....
public class BookActivity extends AppCompatActivity {
    //ArrayList<HashMap<String,Object>> array=new ArrayList<>();
    JSONArray jArray=new JSONArray();
    BookAdapter bookAdapter = new BookAdapter();
    ListView list;

    String query ="파이썬";
    EditText editQuery;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_book);
        getSupportActionBar().setTitle("도서검색");
        list=findViewById(R.id.list);
        new KakaoThread().execute();

        editQuery=findViewById(R.id.query);
        ImageView search = findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                query = editQuery.getText().toString();
                new KakaoThread().execute();
            }
        });
    }

    //카카오서버 접속을위한 쓰레드
    class KakaoThread extends AsyncTask<String, String, String> {
        @Override
        protected String doInBackground(String... strings) {
            String result=Kakao.connect("https://dapi.kakao.com/v3/search/book?target=title&query="+query);
.....



확인



- 스피너를 이용해 검색 조건을 select 할 수 있도록 하겠다.

- src/main/res/layout/activity_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".BookActivity">
    <LinearLayout
        android:id="@+id/linear"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <Spinner
            android:id="@+id/spinner"
            android:layout_width="0sp"
            android:layout_height="wrap_content"
            android:layout_weight="2"/>
        <EditText
            android:id="@+id/query"
            android:layout_width="0sp"
            android:layout_height="wrap_content"
            android:hint="검색어 입력"
            android:layout_weight="3"
            android:maxLines="1"
            android:padding="10sp"/>
        <ImageView
            android:id="@+id/search"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@android:drawable/ic_menu_search"
            android:layout_alignParentRight="true"/>
    </LinearLayout>
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_below="@id/linear"/>
</RelativeLayout>



- src/main/java/com/example/ex04/BookActivity.java

.....
public class BookActivity extends AppCompatActivity {
    //ArrayList<HashMap<String,Object>> array=new ArrayList<>();
    JSONArray jArray=new JSONArray();
    BookAdapter bookAdapter = new BookAdapter();
    ListView list;

    String query ="파이썬";
    EditText editQuery;

    Spinner spinner;
    String target = "title";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_book);
        getSupportActionBar().setTitle("도서검색");
        list=findViewById(R.id.list);
        new KakaoThread().execute();

        editQuery=findViewById(R.id.query);
        ImageView search = findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                query = editQuery.getText().toString();
                new KakaoThread().execute();
            }
        });

        spinner = findViewById(R.id.spinner);
        String[] items ={"책제목","책저자","출판사"};
        ArrayAdapter<String> adapter = new ArrayAdapter<>(this, android.R.layout.simple_spinner_item,items);
        adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
        spinner.setAdapter(adapter);

        spinner.setOnItemSelectedListener(new AdapterView.OnItemSelectedListener() {
            @Override
            public void onItemSelected(AdapterView<?> adapterView, View view, int i, long l) {
                if(i==0){
                    target="title";
                }else if(i==1){
                    target="authors";
                }else if(i==2){
                    target="publisher";
                }
            }

            @Override
            public void onNothingSelected(AdapterView<?> adapterView) {

            }
        });
    }

    //카카오서버 접속을위한 쓰레드
    class KakaoThread extends AsyncTask<String, String, String> {
        @Override
        protected String doInBackground(String... strings) {
            String result=Kakao.connect("https://dapi.kakao.com/v3/search/book?target="+target+"&query="+query);
            //데이타파싱
.....



확인





저작자표시

'ICIA 수업일지' 카테고리의 다른 글

2021.09.30 수업일지(안드로이드 개발 기초, Firebase)  (0) 2021.09.30
2021.09.29 수업일지(안드로이드 개발 기초, Kakao API, Google API)  (0) 2021.09.29
2021.09.27 수업일지(안드로이드 개발 기초, SQLite)  (0) 2021.09.27
2021.09.24 수업일지(안드로이드 개발 기초, SQLite)  (0) 2021.09.24
2021.09.23 수업일지(안드로이드 개발 기초, Activity, View)  (0) 2021.09.23

관련글

티스토리툴바
