2021.09.29 수업일지(안드로이드 개발 기초, Kakao API, Google API)

by 주성씨 2021. 9. 29.

- 카카오 검색 API를 이용해 검색 페이지를 만들어보도록 하겠다.
- 안드로이드(부록) page 28
- 프레그먼트는 액티비티를 분할해서 사용할 수 있게 해주는 라이브러리다.
- ex05 새로운 프로젝트를 생성해주도록 하겠다.

- build.gradle

.....
android {
	// sdkversion을 30으로 수정해주고 minsdkversion을 16으로 그대로 쓰고 싶으면
    // 아래 compileoptions를 추가 아니면 26으로 변경 후 sync now click
    compileSdkVersion 30
    buildToolsVersion "30.0.0"

    defaultConfig {
        applicationId "com.example.ex05"
        minSdkVersion 26
        targetSdkVersion 30
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
    // new
	compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }

}
.....



- build.gradle - 라이브러리 추가

dependencies {
	.....
	implementation 'com.android.support:design:30.0.0' // 플로팅액션바 이용을 위해서 사용
	implementation 'com.squareup.picasso:picasso:2.5.2' // 이미지 저장을 위해서 사용
}



- 인터넷 이용을 위한 권한 설정

- src/main/AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.ex05">
    <uses-permission android:name="android.permission.INTERNET"/>
    <application
.....
    </application>

</manifest>



- vertor asset을 이용해 필요한 이미지를 우선 가져다 두겠다.

- more, search, assignment, menu, book, local dining 을 가져다 둔다.



- 타이틀을 변경하고 메뉴 이미지를 설정해준다.

- src/main/java/com/example/ex05/MainActivity.java

package com.example.ex05;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        getSupportActionBar().setTitle("카카오 검색");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);

    }
}

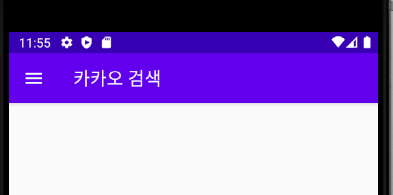

확인





- 아래와 같이 만들어보겠다.

- src/main/res/layout/(new)drawer_view.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="300sp"
 android:layout_height="match_parent"
 android:background="#5559b4"
 android:orientation="vertical"
 android:id="@+id/drawerView"
 android:layout_gravity="start">
 <TextView
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:textColor="#ffffff"
 android:text="홍길동님"
 android:textSize="30sp"
 android:layout_gravity="center"
 android:layout_marginTop="50sp"/>
 <ImageView
 android:layout_width="200sp"
 android:layout_height="200sp"
 android:layout_gravity="center"
 android:src="@drawable/ic_launcher_foreground"
 android:layout_marginTop="30sp"/>
 <TextView
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:layout_gravity="center"
 android:textColor="#ffffff"
 android:textSize="20sp"
 android:text="오늘도 즐거운 하루되세요!"
 android:layout_marginTop="30sp"/>
</LinearLayout>



- 위의 xml을 메인엑티비티에 인클루드 하겠다.

- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    android:id="@+id/drawerLayout">
    <include layout="@layout/drawer_view"/> <<<---
    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello World!"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent" />
</androidx.drawerlayout.widget.DrawerLayout>



- menu 버튼을 클릭시에도 보여줄 수 있도록 하겠다.

- src/main/java/com/example/ex05/MainActivity.java

package com.example.ex05;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.drawerlayout.widget.DrawerLayout;

import android.os.Bundle;
import android.view.MenuItem;
import android.widget.LinearLayout;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        getSupportActionBar().setTitle("카카오 검색");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);

    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        DrawerLayout layout = findViewById(R.id.drawerLayout);
        LinearLayout view = findViewById(R.id.drawerView);
        if(layout.isDrawerOpen(view)){
            layout.closeDrawer(view);
        }else{
            layout.openDrawer(view);
        }
        return super.onOptionsItemSelected(item);
    }
}

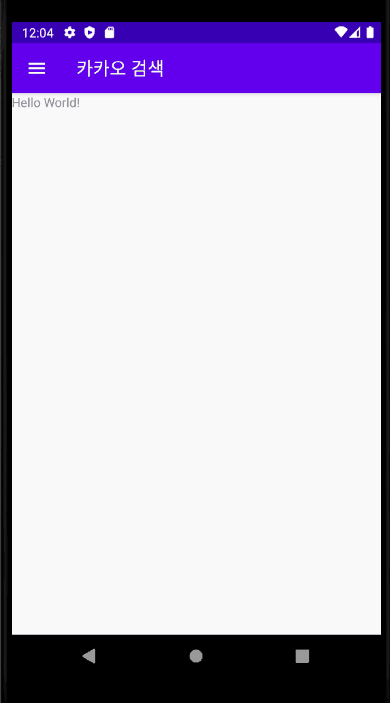

확인





- 아래와 같이 프레그먼트를 생성해주도록 하겠다.

- 블로그, 도서, 지역 프래그먼트 생성

- src/main/java/com/example/ex05/(new)BLogFragment.java

- src/main/java/com/example/ex05/(new)BookFragment.java

- src/main/java/com/example/ex05/(new)LocalFragment.java

- 각 새로 생성된 .xml에서 text를 "블로그", "도서검색", "지역검색"으로 변경한다.

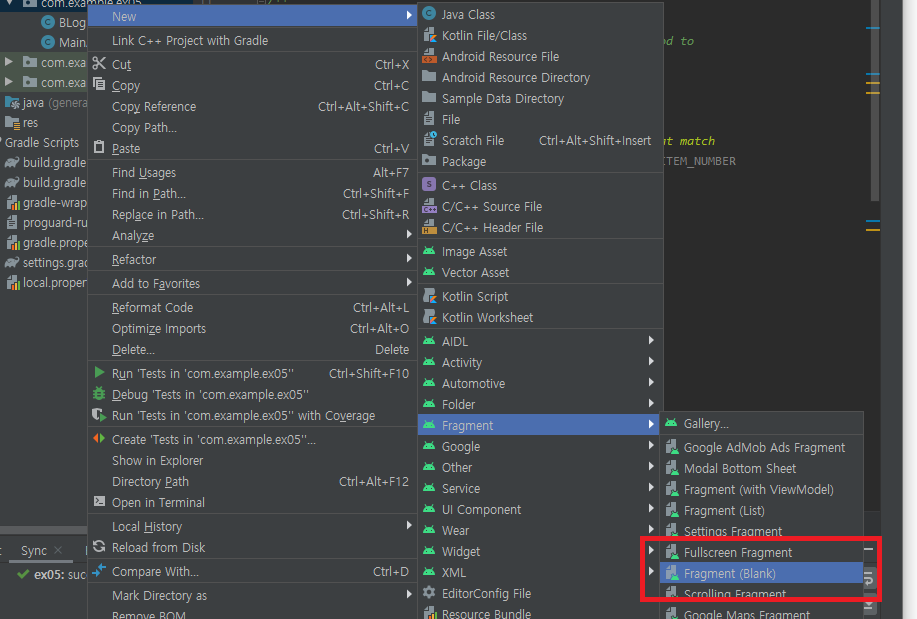

프레그먼트 생성 경로



- 메인 페이지의 탭 레이아웃을 만들어주도록 하겠다.

- src/main/res/layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    android:id="@+id/drawerLayout">
    <include layout="@layout/drawer_view"/>
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical">
<!--        여러개 프레그먼트 넣는 뷰페이저-->
        <androidx.viewpager.widget.ViewPager
            android:id="@+id/pager"
            android:layout_width="match_parent"
            android:layout_height="697dp"
            android:layout_weight="1"/>
        <com.google.android.material.tabs.TabLayout
            android:id="@+id/tab"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:background="#00BCD4"
            app:tabTextColor="#FFFFFF"/>
    </LinearLayout>
</androidx.drawerlayout.widget.DrawerLayout>



- src/main/java/com/example/ex05/MainActivity.java

package com.example.ex05;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.drawerlayout.widget.DrawerLayout;
import androidx.viewpager.widget.ViewPager;

import android.os.Bundle;
import android.view.MenuItem;
import android.widget.LinearLayout;

import com.google.android.material.tabs.TabLayout;

public class MainActivity extends AppCompatActivity {
    // 아이디 저장할 전역변수
    ViewPager pager;
    TabLayout tab;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        getSupportActionBar().setTitle("카카오 검색");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
        getSupportActionBar().setHomeAsUpIndicator(R.drawable.ic_menu);

        pager = findViewById(R.id.pager);
        tab = findViewById(R.id.tab);

        tab.addTab(tab.newTab().setText("블로그"));
        tab.addTab(tab.newTab().setText("도서"));
        tab.addTab(tab.newTab().setText("지역"));
        tab.getTabAt(0).setIcon(R.drawable.ic_blog);
        tab.getTabAt(1).setIcon(R.drawable.ic_book);
        tab.getTabAt(2).setIcon(R.drawable.ic_local);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        DrawerLayout layout = findViewById(R.id.drawerLayout);
        LinearLayout view = findViewById(R.id.drawerView);
        if(layout.isDrawerOpen(view)){
            layout.closeDrawer(view);
        }else{
            layout.openDrawer(view);
        }
        return super.onOptionsItemSelected(item);
    }
}

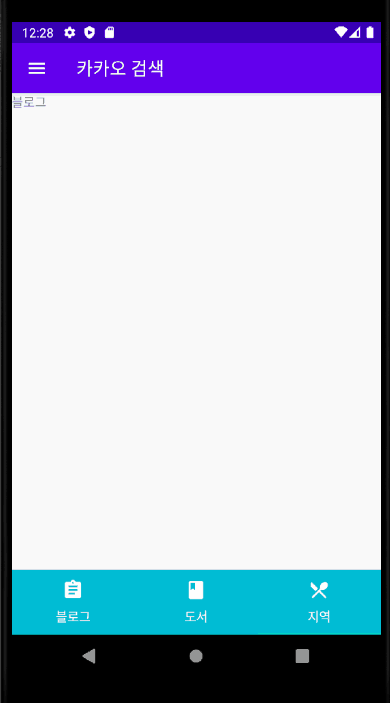

확인





- 이제 프레그먼트를 메인에 넣어줄 수 있게 어뎁터를 생성해주도록 하겠다.

- src/main/java/com/example/ex05/MainActivity.java

.....

        // 페이저 어뎁터 생성
        PagerAdapter pagerAdapter = new PagerAdapter(getSupportFragmentManager());
        pager.setAdapter(pagerAdapter);
    }

    class PagerAdapter extends FragmentStatePagerAdapter{

        public PagerAdapter(@NonNull FragmentManager fm) {
            super(fm);
        }

        @NonNull
        @Override
        public Fragment getItem(int position) {
            switch (position){
                case 0:
                    return new BLogFragment();
                case 1:
                    return new BookFragment();
                case 2:
                    return new LocalFragment();
                default:
                    return null;
            }
        }

        @Override
        public int getCount() {
//            프레그먼트가 3개이니 3으로 고정
            return 3;
        }
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
.....





- 위에서는 드래그하면 Tab을 변경하였다면 이번에는 Tab 클릭시 페이지를 변경해주도록 하겠다.



.....
        // 페이저 어뎁터 생성
        PagerAdapter pagerAdapter = new PagerAdapter(getSupportFragmentManager());
        pager.setAdapter(pagerAdapter);
        // Tab 클릭시 페이지 변경
        pager.addOnPageChangeListener(new TabLayout.TabLayoutOnPageChangeListener(tab));
        tab.addOnTabSelectedListener(new TabLayout.OnTabSelectedListener() {
            @Override
            public void onTabSelected(TabLayout.Tab tab) {
                pager.setCurrentItem(tab.getPosition());
            }

            @Override
            public void onTabUnselected(TabLayout.Tab tab) {

            }

            @Override
            public void onTabReselected(TabLayout.Tab tab) {

            }
        });
    }
.....

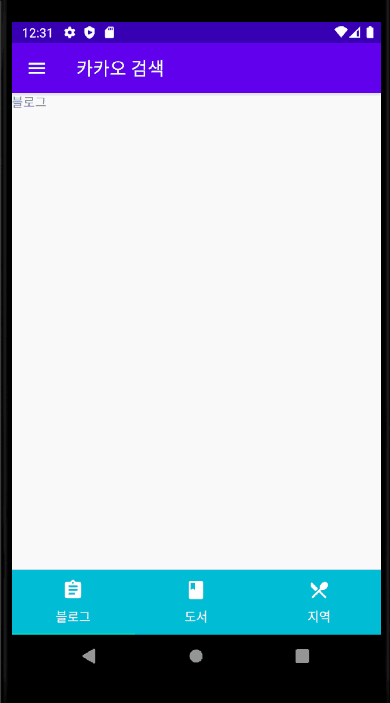

확인



- 이제 프레그먼트 디자인을 해주도록 하겠다.

- 우선 카카오 클래스를 생성하겠다.

- src/main/java/com/example/ex05/(new)Kakao.java

package com.example.ex05;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.URL;

public class Kakao {
    public static String connect(String apiURL) {
        try {
            URL url = new URL(apiURL);
            HttpURLConnection con = (HttpURLConnection)url.openConnection();
            con.setRequestMethod("GET");
            con.setRequestProperty("Authorization", "KakaoAK 'REST API key'");
            int responseCode = con.getResponseCode();
            BufferedReader br;
            if(responseCode==200) { // 정상 호출인 경우
                br = new BufferedReader(new InputStreamReader(con.getInputStream(), "UTF-8"));
            } else { //에러 발생가 발생한 경우
                br = new BufferedReader(new InputStreamReader(con.getErrorStream()));
            }
            String inputLine;
            StringBuffer response = new StringBuffer();
            while ((inputLine = br.readLine()) != null) {
                response.append(inputLine);
            }
            br.close();
            System.out.println(response.toString());
            return response.toString();
        }catch (Exception e) {
            return e.toString();
        }
    }
}





- 이제 블로그, 도서, 지역 프레그먼트를 차례차례 생성해주겠다.

- src/main/java/com/example/ex05/BLogFragment.java

package com.example.ex05;

import android.os.AsyncTask;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class BLogFragment extends Fragment {

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_b_log, container, false);
        new BLogThread().execute();
        return view;
    }

    // 카카오 접속을 위한 backthread를 생성한다.
    // Kakao.class의 connect method를 호출하겠다.
    class BLogThread extends AsyncTask<String, String, String>{

        @Override
        protected String doInBackground(String... strings) {
            String url="https://dapi.kakao.com/v2/search/web?query=안드로이드";
            Kakao.connect(url);
            return null;
        }
    }
}

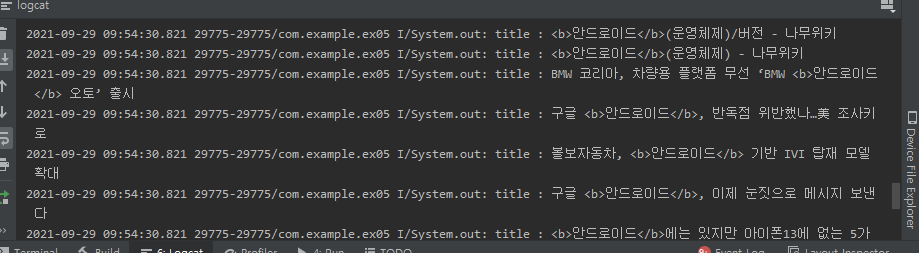

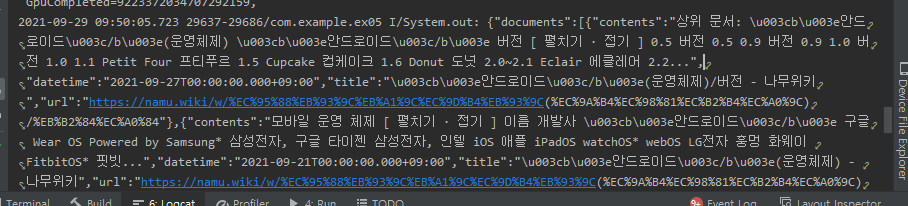

Kakao.class에 의해서 콘솔에 찍힌것을 확인할 수 있다.



package com.example.ex05;

import android.os.AsyncTask;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

import org.json.JSONArray;
import org.json.JSONObject;

public class BLogFragment extends Fragment {
    JSONArray jsonArray;
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_b_log, container, false);
        new BLogThread().execute();
        return view;
    }

    // 카카오 접속을 위한 backthread를 생성한다.
    // Kakao.class의 connect method를 호출하겠다.
    class BLogThread extends AsyncTask<String, String, String>{

        @Override
        protected String doInBackground(String... strings) {
            String url="https://dapi.kakao.com/v2/search/web?query=안드로이드";
            return Kakao.connect(url);
        }

        // doInBackground의 Kakao.connect(url)가 아래 s로 들어가게된다.
        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            try {
                jsonArray = new JSONObject(s).getJSONArray("documents");
                // 데이터를 잘 가지고 오는지 확인하는 부분 지워도 됨
                for(int i=0; i<jsonArray.length();i++){
                    JSONObject obj = jsonArray.getJSONObject(i);
                    System.out.println("title : "+obj.getString("title"));
                }
            }catch (Exception e){
                System.out.println("post error: "+ e.toString());
            }
        }
    }
}

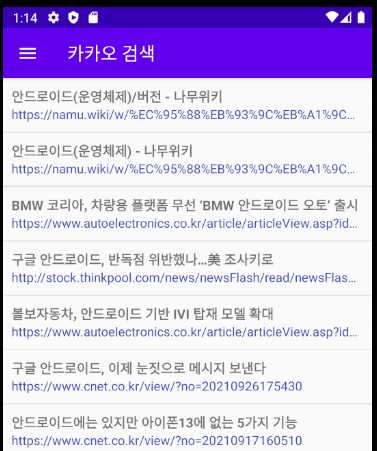

데이터가 잘 나오는지 확인





- 이제 데이터를 레이아웃에 넣어주도록 하겠다.

- src/main/res/layout/fragment_b_log.xml

- src/main/res/layout/(new)item_blog.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:padding="10sp"
    android:elevation="3sp">
    <TextView
        android:id="@+id/title"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="제목위치"
        android:textSize="15sp"
        android:textStyle="bold"/>
    <TextView
        android:id="@+id/link"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="주소위치"
        android:textColor="#3F51B5"
        android:lines="1"
        android:ellipsize="end"/>
</LinearLayout>



- src/main/java/com/example/ex05/BLogFragment.java

package com.example.ex05;

.....

public class BLogFragment extends Fragment {
    JSONArray jsonArray;
    BlogAdapter blogAdapter = new BlogAdapter();
    ListView list;
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_b_log, container, false);
        list = view.findViewById(R.id.list);
        new BLogThread().execute();
        return view;
    }

    // 카카오 접속을 위한 backthread를 생성한다.
    // Kakao.class의 connect method를 호출하겠다.
    class BLogThread extends AsyncTask<String, String, String>{

        @Override
        protected String doInBackground(String... strings) {
            // 실행
            String url="https://dapi.kakao.com/v2/search/web?query=안드로이드";
            return Kakao.connect(url);
        }

        // doInBackground의 Kakao.connect(url)가 아래 s로 들어가게된다.
        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            try {
                jsonArray = new JSONObject(s).getJSONArray("documents");
                list.setAdapter(blogAdapter);
            }catch (Exception e){
                System.out.println("post error: "+ e.toString());
            }
        }
    }

    // 출력 블로그 어뎁터 생성
    class BlogAdapter extends BaseAdapter{
.....

        @Override
        public View getView(int position, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_blog, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(position);
                TextView title = view.findViewById(R.id.title);
                // xml에서 html 사용 - Html.fromhtml()
                title.setText(Html.fromHtml(obj.getString("title")));
                TextView link = view.findViewById(R.id.link);
                link.setText(obj.getString("url"));
            }catch (Exception e){
                System.out.println("뷰 오류 : " +e.toString());
            }
            return view;
        }
    }
}

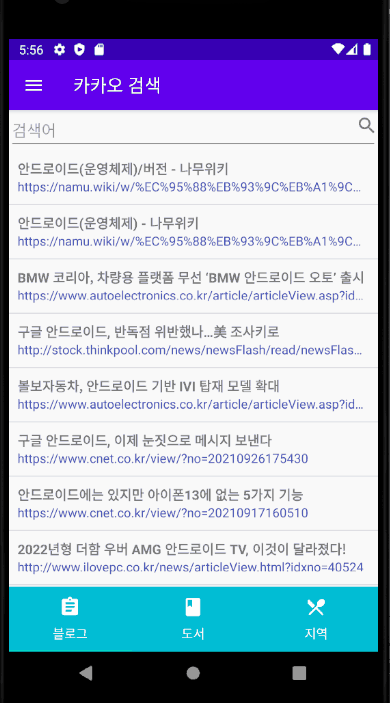

확인



- 블로그 프레그먼트를 꾸며주도록 하겠다.

- src/main/res/layout/fragment_b_log.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".BLogFragment">
    <EditText
        android:id="@+id/query"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="검색어"/>
    <ImageView
        android:id="@+id/search"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_search"
        android:layout_alignParentRight="true"
        android:layout_marginTop="5sp"/>
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="블로그"
        android:layout_below="@id/query"/>
</RelativeLayout>

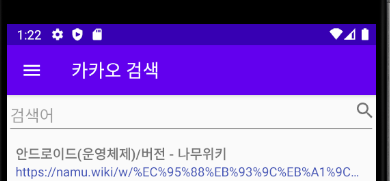

확인



- 검색 기능을 추가하겠다.

- src/main/java/com/example/ex05/BLogFragment.java

.....
public class BLogFragment extends Fragment {
    JSONArray jsonArray;
    BlogAdapter blogAdapter = new BlogAdapter();
    ListView list;
    String strQuery = "안드로이드";
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_b_log, container, false);
        list = view.findViewById(R.id.list);

        final EditText query = view.findViewById(R.id.query);
        ImageView search = view.findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                strQuery = query.getText().toString();
                new BLogThread().execute();
            }
        });
        new BLogThread().execute();
        return view;
    }

    // 카카오 접속을 위한 backthread를 생성한다.
    // Kakao.class의 connect method를 호출하겠다.
    class BLogThread extends AsyncTask<String, String, String>{

        @Override
        protected String doInBackground(String... strings) {
            // 실행
            String url="https://dapi.kakao.com/v2/search/web?query="+strQuery;
            return Kakao.connect(url);
        }
.....

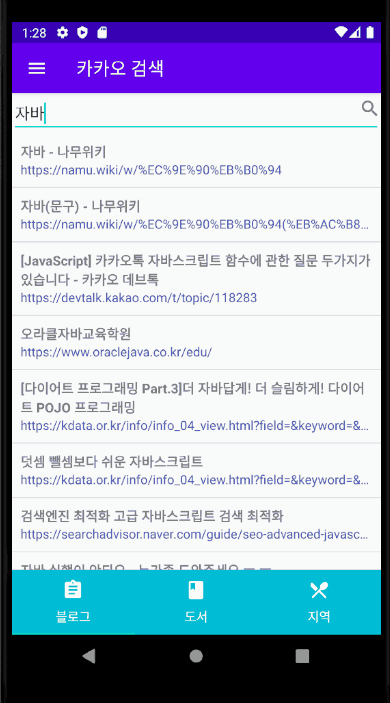

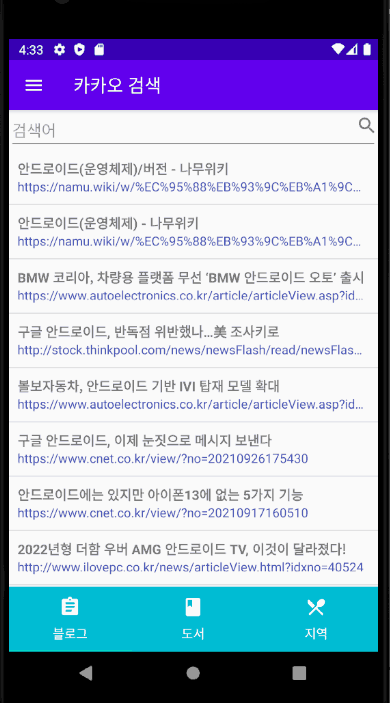

확인



- 도서 검색 xml은 블로그 검색 xml을 그대로 복사해준다.

- src/main/res/layout/fragment_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".BookFragment">
    <EditText
        android:id="@+id/query"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="검색어"/>
    <ImageView
        android:id="@+id/search"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_search"
        android:layout_alignParentRight="true"
        android:layout_marginTop="5sp"/>
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="도서"
        android:layout_below="@id/query"/>
</RelativeLayout>



- src/main/res/layout/(new)item_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#E3F3FA"
    android:padding="10sp"
    android:layout_margin="5sp"
    android:elevation="3sp">
    <ImageView
        android:id="@+id/thumbnail"
        android:layout_width="50sp"
        android:layout_height="50sp"
        android:src="@mipmap/ic_launcher"
        android:layout_marginRight="20sp"/>
    <TextView
        android:id="@+id/title"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="제목이 들어갑니다............"
        android:layout_toRightOf="@id/thumbnail"/>
    <TextView
        android:id="@+id/publisher"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="출판사 들어갑니다............"
        android:layout_toRightOf="@id/thumbnail"
        android:layout_below="@id/title"/>
    <TextView
        android:id="@+id/price"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="가격이 들어갑니다............"
        android:layout_toRightOf="@id/thumbnail"
        android:layout_below="@id/publisher"/>
</RelativeLayout>



- src/main/java/com/example/ex05/BookFragment.java

package com.example.ex05;

import android.os.AsyncTask;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.text.Html;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import com.squareup.picasso.Picasso;

import org.json.JSONArray;
import org.json.JSONObject;

import java.text.DecimalFormat;


public class BookFragment extends Fragment {
    String strQuery = "파이썬";
    JSONArray jsonArray;
    BookAdapter bookAdapter = new BookAdapter();
    ListView list;
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_book, container, false);
        list = view.findViewById(R.id.list);
        new BookThread().execute();
        final EditText query = view.findViewById(R.id.query);
        ImageView search = view.findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                strQuery = query.getText().toString();
                new BookThread().execute();
            }
        });
        return view;
    }

    class BookThread extends AsyncTask<String, String, String>{
        @Override
        protected String doInBackground(String... strings) {
            String url = "https://dapi.kakao.com/v3/search/book?target=title&query="+strQuery;
            return Kakao.connect(url);
        }

        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            try {
                jsonArray = new JSONObject(s).getJSONArray("documents");
                list.setAdapter(bookAdapter);
            }catch (Exception e){
                System.out.println("book 오류 : "+e.toString());
            }
        }
    }

    class BookAdapter extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_book, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                ImageView thumbnail = view.findViewById(R.id.thumbnail);
                Picasso.with(getContext()).load(obj.getString("thumbnail")).into(thumbnail);
                TextView title = view.findViewById(R.id.title);
                title.setText(Html.fromHtml(obj.getString("title")));
                TextView publisher = view.findViewById(R.id.publisher);
                publisher.setText(obj.getString("publisher"));
                TextView price = view.findViewById(R.id.price);
                DecimalFormat df = new DecimalFormat("#,###원");
                price.setText(df.format(obj.getInt("price")));
            }catch (Exception e){
                System.out.println("뷰 오류 : "+ e.toString());
            }
            return view;
        }
    }
}

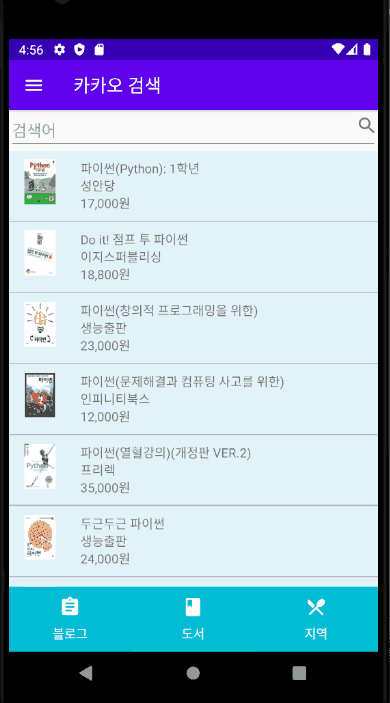

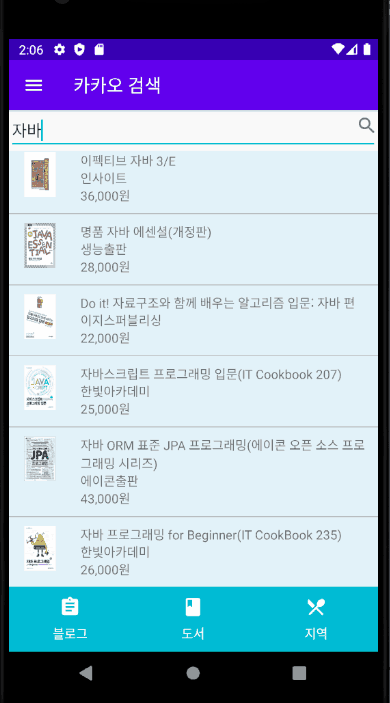

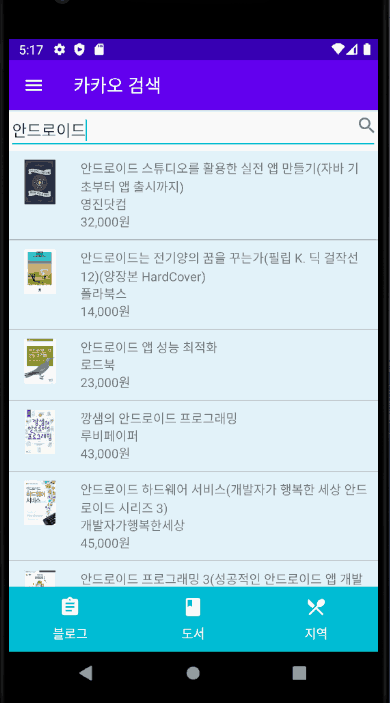

확인

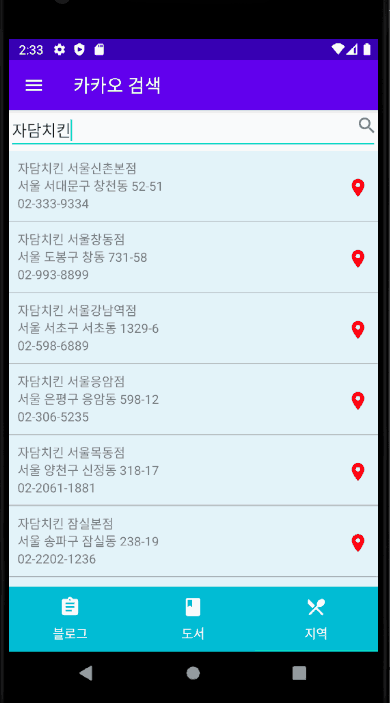

- 지역 검색을 해주겠다.

- src/main/res/layout/fragment_local.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".LocalFragment">
    <EditText
        android:id="@+id/query"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:hint="검색어"/>
    <ImageView
        android:id="@+id/search"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_search"
        android:layout_alignParentRight="true"
        android:layout_marginTop="5sp"/>
    <ListView
        android:id="@+id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="도서"
        android:layout_below="@id/query"/>
</RelativeLayout>



- src/main/res/layout/(new)item_local.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#E3F3FA"
    android:padding="10sp"
    android:layout_margin="5sp"
    android:elevation="3sp">
    <TextView
        android:id="@+id/name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="장소명입니다."/>
    <TextView
        android:id="@+id/address"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="주소입니다."
        android:layout_below="@id/name"/>
    <TextView
        android:id="@+id/tel"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="전화번호입니다."
        android:layout_below="@id/address"/>
    <ImageView
        android:id="@+id/map"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_baseline_location_on_24"
        android:layout_alignParentRight="true"
        android:layout_below="@id/name"/>
</RelativeLayout>



- src/main/java/com/example/ex05/LocalFragment.java

package com.example.ex05;

import android.os.AsyncTask;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.text.Html;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

import org.json.JSONArray;
import org.json.JSONObject;

public class LocalFragment extends Fragment {
    JSONArray jsonArray;
    String strQuery = "부어치킨";
    LocalAdpater localAdpater = new LocalAdpater();
    ListView list;
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_local, container, false);
        list=view.findViewById(R.id.list);
        final EditText query = view.findViewById(R.id.query);
        ImageView search = view.findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                strQuery = query.getText().toString();
                new LocalThread().execute();
            }
        });
        new LocalThread().execute();
        return view;
    }

    class LocalThread extends AsyncTask<String, String, String>{

        @Override
        protected String doInBackground(String... strings) {
            String url = "https://dapi.kakao.com/v2/local/search/keyword.json?query="+strQuery;
            return Kakao.connect(url);
        }

        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            try {
                jsonArray = new JSONObject(s).getJSONArray("documents");
                list.setAdapter(localAdpater);
            }catch (Exception e){
                System.out.println("로컬 오류 : "+e.toString());
            }

        }
    }

    class LocalAdpater extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_local, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                TextView name = view.findViewById(R.id.name);
                name.setText(Html.fromHtml(obj.getString("place_name")));
                TextView address = view.findViewById(R.id.address);
                address.setText(obj.getString("address_name"));
                TextView tel = view.findViewById(R.id.tel);
                tel.setText(obj.getString("phone"));
            }catch (Exception e){
                System.out.println("데이터 오류 : "+e.toString());
            }

            return view;
        }
    }
}

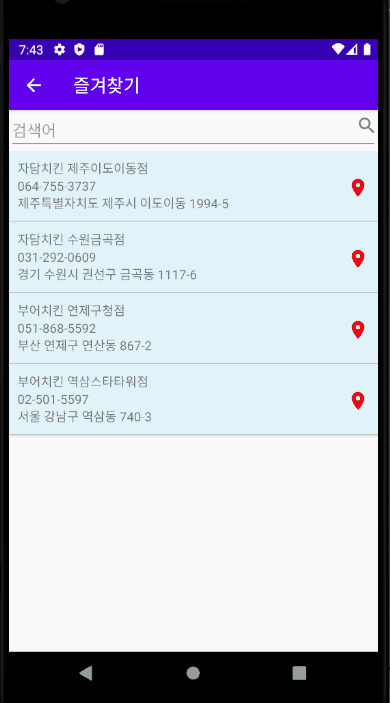

확인



- 이제 각 프레그먼트에서 검색 결과를 자세히 보는 작업을 하도록 하겠다.

- 각 아이템을 클릭시 아래 엑티비티로 이동하도록 하겠다.

- src/main/java/com/example/ex05/(new)BlogActivity.java

package com.example.ex05;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Intent;
import android.os.Bundle;
import android.text.Html;
import android.view.MenuItem;

public class BlogActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_blog);
        Intent intent = getIntent();
        String url = intent.getStringExtra("url");
        String title = intent.getStringExtra("title");
        getSupportActionBar().setTitle(Html.fromHtml(title));
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }

        return super.onOptionsItemSelected(item);
    }
}



- src/main/res/layout/item_blog.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:padding="10sp"
    android:elevation="3sp"
    android:id="@+id/blog"> <<<---
....
</LinearLayout>



- src/main/java/com/example/ex05/BLogFragment.java

.....
    // 출력 블로그 어뎁터 생성
    class BlogAdapter extends BaseAdapter{
        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int position, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_blog, viewGroup, false);
            try {
                final JSONObject obj = jsonArray.getJSONObject(position);
                TextView title = view.findViewById(R.id.title);
                // Html.fromHtml() xml에서 html 사용
                title.setText(Html.fromHtml(obj.getString("title")));
                TextView link = view.findViewById(R.id.link);
                link.setText(obj.getString("url"));
                final String url = obj.getString("url");
                final String strTitle = obj.getString("title");
                LinearLayout blog = view.findViewById(R.id.blog);
                blog.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        // 현재 액티비티 이름을 알 수 없어서 getContext로
                        Intent intent = new Intent(getContext(), BlogActivity.class);
                        intent.putExtra("url", url);
                        intent.putExtra("title", strTitle);
                        startActivity(intent);
                    }
                });

            }catch (Exception e){
                System.out.println("뷰 오류 : " +e.toString());
            }
            return view;
        }
    }
.....

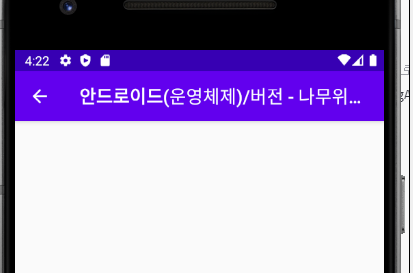

확인





- 이제 웹뷰를 이용해 페이지를 보이도록 하겠다.

- 페이지가 보일때 프로그래스바를 이용하여 로딩상황을 볼 수 있도록 하고 페이지 불러오기가 끝나면 사라지도록 하겠다.

- src/main/res/layout/activity_blog.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".BlogActivity">
    <WebView
        android:id="@+id/web"
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>
    <ProgressBar
        android:id="@+id/progress"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerHorizontal="true"
        android:layout_centerVertical="true"/>
</RelativeLayout>





- 웹뷰를 만들겠다.

- src/main/java/com/example/ex05/BlogActivity.java

package com.example.ex05;

.....

public class BlogActivity extends AppCompatActivity {

    ProgressBar progressBar;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_blog);

        progressBar = findViewById(R.id.progress);

        Intent intent = getIntent();
        String url = intent.getStringExtra("url");
        String title = intent.getStringExtra("title");
        getSupportActionBar().setTitle(Html.fromHtml(title));
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        WebView web = findViewById(R.id.web);
        web.setWebViewClient(new MyWebView());
        web.loadUrl(url);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }

        return super.onOptionsItemSelected(item);
    }

    class MyWebView extends WebViewClient{
        @Override
        public boolean shouldOverrideUrlLoading(WebView view, WebResourceRequest request) {
            return super.shouldOverrideUrlLoading(view, request);
        }

        @Override
        public void onPageFinished(WebView view, String url) {
            super.onPageFinished(view, url);
            progressBar.setVisibility(View.INVISIBLE);
        }
    }
}



확인





- 북 프레그먼트에서 도서 정보를 플로팅해주는 레이아웃를 생성하도록 하겠다.

- src/main/res/layout/(new)layout_book.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="20sp">
    <ImageView
        android:id="@+id/thumbnail"
        android:layout_width="200sp"
        android:layout_height="250sp"
        android:src="@mipmap/ic_launcher"
        android:layout_gravity="center"
        android:layout_marginBottom="20sp"/>
    <TextView
        android:id="@+id/description"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="책내용부분"
        android:padding="30sp"/>
</LinearLayout>



- src/main/res/layout/item_book.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="#E3F3FA"
    android:padding="10sp"
    android:layout_margin="5sp"
    android:elevation="3sp"
    android:id="@+id/book"> <<<---
    .....



- src/main/java/com/example/ex05/BookFragment.java

.....
    class BookAdapter extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_book, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                ImageView thumbnail = view.findViewById(R.id.thumbnail);
                Picasso.with(getContext()).load(obj.getString("thumbnail")).into(thumbnail);
                TextView title = view.findViewById(R.id.title);
                title.setText(Html.fromHtml(obj.getString("title")));
                TextView publisher = view.findViewById(R.id.publisher);
                publisher.setText(obj.getString("publisher"));
                TextView price = view.findViewById(R.id.price);
                DecimalFormat df = new DecimalFormat("#,###원");
                price.setText(df.format(obj.getInt("price")));
				// new
                final String strImage = obj.getString("thumbnail");
                final String strDescription = obj.getString("contents");

                RelativeLayout book = view.findViewById(R.id.book);
                book.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        LinearLayout layout = (LinearLayout)getLayoutInflater().inflate(R.layout.layout_book, null);
                        ImageView image = layout.findViewById(R.id.thumbnail);
                        Picasso.with(getContext()).load(strImage).into(image);
                        TextView description = layout.findViewById(R.id.description);
                        description.setText(strDescription);
                        AlertDialog.Builder box = new AlertDialog.Builder(getContext());
                        box.setTitle("책정보");
                        box.setNeutralButton("닫기",null);
                        box.setView(layout);
                        box.show();
                    }
                });
            }catch (Exception e){
                System.out.println("뷰 오류 : "+ e.toString());
            }
            return view;
        }
    }
.....



확인



- 검색 후 키패드가 자동으로 닫히게 하겠다.

package com.example.ex05;

import android.app.AlertDialog;
import android.content.Context;
import android.os.AsyncTask;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.text.Html;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.inputmethod.InputMethodManager;
import android.widget.BaseAdapter;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.RelativeLayout;
import android.widget.TextView;

import com.squareup.picasso.Picasso;

import org.json.JSONArray;
import org.json.JSONObject;

import java.text.DecimalFormat;


public class BookFragment extends Fragment {
    String strQuery = "파이썬";
    JSONArray jsonArray;
    BookAdapter bookAdapter = new BookAdapter();
    ListView list;
    // 키패드 자동으로 닫기 위한 클래스
    InputMethodManager imm; <<<===

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_book, container, false);
        list = view.findViewById(R.id.list);

        imm = (InputMethodManager)getContext().getSystemService(Context.INPUT_METHOD_SERVICE); <<<===
        new BookThread().execute();
        final EditText query = view.findViewById(R.id.query);
        ImageView search = view.findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                strQuery = query.getText().toString();
                imm.hideSoftInputFromWindow(query.getWindowToken(), 0); <<<===
                new BookThread().execute();
            }
        });
        return view;
    }







- 지도에서 로케이션 이미지를 클릭하면 해당 위치를 나타내는 지도가 뜨도록 하겠다.

- 지도는 구글 API를 이용하도록 하겠다.

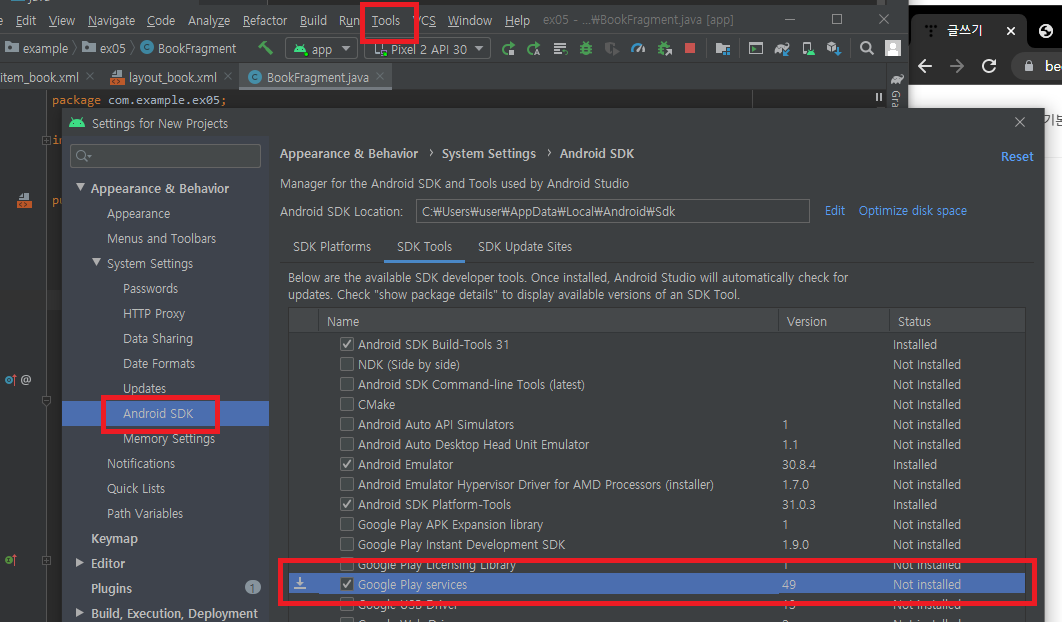

구글 지도 API이용을 위한 서비스 설치 경로

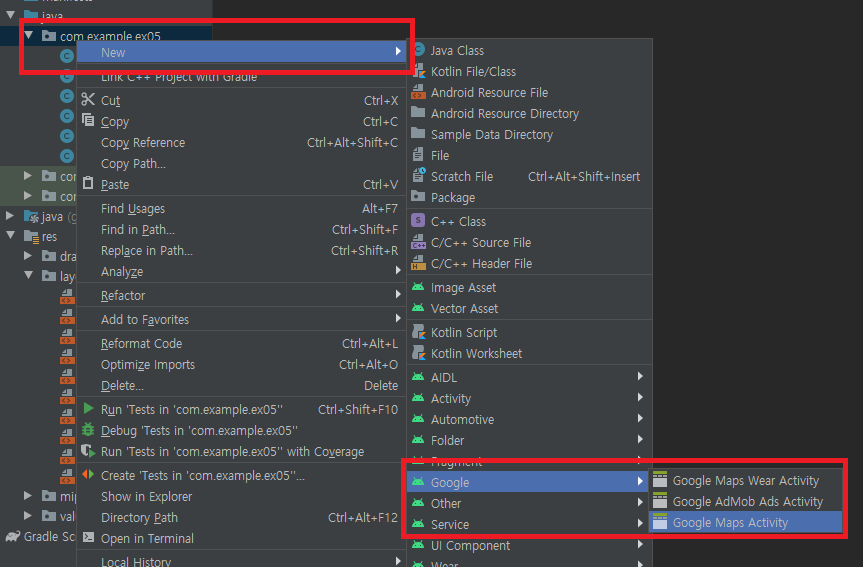

구글 맵 액티비티 생성 경로



- 구글 API키를 발급받아서 넣도록 하겠다.

- src/debug/res/values/google_maps_api.xml

- 해당 .xml에 아래의 링크에서 로그인하고 프로젝트를 생성하여 apikey를 받아오겠다.

https://console.developers.google.com/flows/enableapi?apiid=maps_android_backend&keyType=CLIENT_SIDE_ANDROID&r=D1:85:84:52:37:3B:DD:B1:20:4B:60:44:B9:8C:6A:00:08:BC:3B:7D%3Bcom.example.ex05

<resources>
    <!--
    TODO: Before you run your application, you need a Google Maps API key.

    To get one, follow this link, follow the directions and press "Create" at the end:

    https://console.developers.google.com/flows/enableapi?apiid=maps_android_backend&keyType=CLIENT_SIDE_ANDROID&r=D1:85:84:52:37:3B:DD:B1:20:4B:60:44:B9:8C:6A:00:08:BC:3B:7D%3Bcom.example.ex05

    You can also add your credentials to an existing key, using these values:

    Package name:
    com.example.ex05

    SHA-1 certificate fingerprint:
    D1:85:84:52:37:3B:DD:B1:20:4B:60:44:B9:8C:6A:00:08:BC:3B:7D

    Alternatively, follow the directions here:
    https://developers.google.com/maps/documentation/android/start#get-key

    Once you have your key (it starts with "AIza"), replace the "google_maps_key"
    string in this file.
    -->
    <string name="google_maps_key" translatable="false" templateMergeStrategy="preserve">
    키 넣는 부분</string>
</resources>



- 지도 프레그먼크의 아이템의 map을 클릭 시 해당 액티비티로 이동할 수 있도록 하겠다.

.....
	class LocalAdpater extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_local, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                TextView name = view.findViewById(R.id.name);
                name.setText(Html.fromHtml(obj.getString("place_name")));
                TextView address = view.findViewById(R.id.address);
                address.setText(obj.getString("address_name"));
                TextView tel = view.findViewById(R.id.tel);
                tel.setText(obj.getString("phone"));
				// 클릭 시 지도 액티비티로 이동
                ImageView map = view.findViewById(R.id.map);
                map.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        Intent intent = new Intent(getContext(), MapsActivity.class);
                        startActivity(intent);
                    }
                });

            }catch (Exception e){
                System.out.println("데이터 오류 : "+e.toString());
            }

            return view;
        }
    }
.....



확인



- 이제 해당 위치의 위도 경도를 받아서 값을 넘겨줄 수 있도록 하겠다.

- src/main/java/com/example/ex05/LocalFragment.java

.....
    class LocalAdpater extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_local, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                TextView name = view.findViewById(R.id.name);
                name.setText(Html.fromHtml(obj.getString("place_name")));
                TextView address = view.findViewById(R.id.address);
                address.setText(obj.getString("address_name"));
                TextView tel = view.findViewById(R.id.tel);
                tel.setText(obj.getString("phone"));
                // 위도 경도 위치명 가지고 오기
                final String x = obj.getString("x");
                final String y = obj.getString("y");
                final String place_name = obj.getString("place_name");

                ImageView map = view.findViewById(R.id.map);
                map.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        Intent intent = new Intent(getContext(), MapsActivity.class);
                        intent.putExtra("x",x);
                        intent.putExtra("y",y);
                        intent.putExtra("title",place_name);
                        startActivity(intent);
                    }
                });

            }catch (Exception e){
                System.out.println("데이터 오류 : "+e.toString());
            }

            return view;
        }
    }

.....



- src/main/java/com/example/ex05/MapsActivity.java

package com.example.ex05;

import androidx.fragment.app.FragmentActivity;

import android.content.Intent;
import android.os.Bundle;

import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;

public class MapsActivity extends FragmentActivity implements OnMapReadyCallback {

    double lat;
    double lng;
    String title;

    private GoogleMap mMap;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_maps);

        Intent intent = getIntent();
        lat = Double.parseDouble(intent.getStringExtra("y"));
        lng = Double.parseDouble(intent.getStringExtra("x"));
        title = intent.getStringExtra("title");

        // Obtain the SupportMapFragment and get notified when the map is ready to be used.
        SupportMapFragment mapFragment = (SupportMapFragment) getSupportFragmentManager()
                .findFragmentById(R.id.map);
        mapFragment.getMapAsync(this);
    }

    @Override
    public void onMapReady(GoogleMap googleMap) {
        mMap = googleMap;

        // Add a marker in Sydney and move the camera
        LatLng sydney = new LatLng(lat, lng);
        mMap.addMarker(new MarkerOptions().position(sydney).title(title));
        mMap.moveCamera(CameraUpdateFactory.newLatLng(sydney));
        mMap.moveCamera(CameraUpdateFactory.zoomTo(15));
    }
}

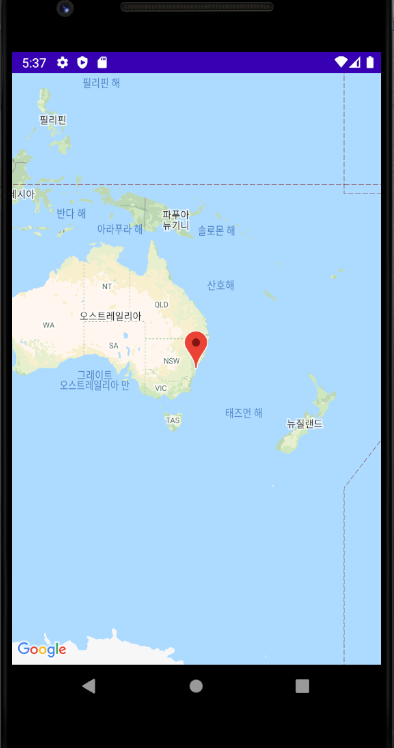

확인



https://apis.map.kakao.com/android/guide/





- 지역검색한 내용을 즐겨찾기 지정하도록 하겠다.

- src/main/res/drawable/(new)ic_baseline_favorite_24.xml

- src/main/res/layout/item_local.xml

.....
    <ImageView
        android:id="@+id/like"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/ic_baseline_favorite_24"
        android:layout_toLeftOf="@id/map"
        android:layout_below="@id/name"/>
</RelativeLayout>



- src/main/java/com/example/ex05/LocalFragment.java

.....
        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_local, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                TextView name = view.findViewById(R.id.name);
                name.setText(Html.fromHtml(obj.getString("place_name")));
                TextView address = view.findViewById(R.id.address);
                address.setText(obj.getString("address_name"));
                TextView tel = view.findViewById(R.id.tel);
                tel.setText(obj.getString("phone"));

                // 위도 경도 위치명 가지고 오기
                final String x = obj.getString("x");
                final String y = obj.getString("y");
                final String place_name = obj.getString("place_name");

                ImageView map = view.findViewById(R.id.map);
                map.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        Intent intent = new Intent(getContext(), MapsActivity.class);
                        intent.putExtra("x",x);
                        intent.putExtra("y",y);
                        intent.putExtra("title",place_name);
                        startActivity(intent);
                    }
                });

                // 즐겨찾기 이미지 클릭 시
                ImageView like = view.findViewById(R.id.like);
                like.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        AlertDialog.Builder box = new AlertDialog.Builder(getContext());
                        box.setMessage("즐겨찾기에 등록하시겠습니까?");
                        box.setNegativeButton("아니오",null);
                        box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                            @Override
                            public void onClick(DialogInterface dialogInterface, int i) {

                            }
                        });
                        box.show();
                    }
                });

            }catch (Exception e){
                System.out.println("데이터 오류 : "+e.toString());
            }

            return view;
        }
.....

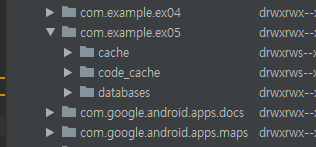

- 즐겨찾기 설정을 DB에 저장해주도록 하겠다.

- src/main/java/com/example/ex05/(new)LikeDB.java - java class

package com.example.ex05;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;

import androidx.annotation.Nullable;

public class LikeDB extends SQLiteOpenHelper {
    public LikeDB(@Nullable Context context) {
        super(context, "like.db", null, 1);
    }

    @Override
    public void onCreate(SQLiteDatabase db) {
        db.execSQL("create table tbllike(_id integer primary key autoincrement,name text,address text,tel text, x text, y text)");
    }

    @Override
    public void onUpgrade(SQLiteDatabase sqLiteDatabase, int i, int i1) {

    }
}



- src/main/java/com/example/ex05/LocalFragment.java

.....
public class LocalFragment extends Fragment {

    JSONArray jsonArray;
    String strQuery = "부어치킨";
    LocalAdpater localAdpater = new LocalAdpater();
    ListView list;

    // DB 오픈을 위한 변수 선언
    LikeDB likeDB;
    SQLiteDatabase db;

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_local, container, false);
		// new
        likeDB = new LikeDB(getContext());
        db=likeDB.getWritableDatabase();

        list=view.findViewById(R.id.list);
        final EditText query = view.findViewById(R.id.query);
        ImageView search = view.findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                strQuery = query.getText().toString();
                new LocalThread().execute();
            }
        });
        new LocalThread().execute();
        return view;
    }
.....



확인



- src/main/java/com/example/ex05/LocalFragment.java

public class LocalFragment extends Fragment {

    JSONArray jsonArray;
    String strQuery = "부어치킨";
    LocalAdpater localAdpater = new LocalAdpater();
    ListView list;

    // DB 오픈을 위한 변수 선언
    LikeDB likeDB;
    SQLiteDatabase db;

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_local, container, false);

        likeDB = new LikeDB(getContext());
        db=likeDB.getWritableDatabase();

        list=view.findViewById(R.id.list);
        final EditText query = view.findViewById(R.id.query);
        ImageView search = view.findViewById(R.id.search);
        search.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                strQuery = query.getText().toString();
                new LocalThread().execute();
            }
        });
        new LocalThread().execute();
        return view;
    }

    class LocalThread extends AsyncTask<String, String, String>{

        @Override
        protected String doInBackground(String... strings) {
            String url = "https://dapi.kakao.com/v2/local/search/keyword.json?query="+strQuery;
            return Kakao.connect(url);
        }

        @Override
        protected void onPostExecute(String s) {
            super.onPostExecute(s);
            try {
                jsonArray = new JSONObject(s).getJSONArray("documents");
                list.setAdapter(localAdpater);
            }catch (Exception e){
                System.out.println("로컬 오류 : "+e.toString());
            }

        }
    }

    class LocalAdpater extends BaseAdapter{

        @Override
        public int getCount() {
            return jsonArray.length();
        }

        @Override
        public Object getItem(int i) {
            return null;
        }

        @Override
        public long getItemId(int i) {
            return 0;
        }

        @Override
        public View getView(int i, View view, ViewGroup viewGroup) {
            view = getLayoutInflater().inflate(R.layout.item_local, viewGroup, false);
            try {
                JSONObject obj = jsonArray.getJSONObject(i);
                TextView name = view.findViewById(R.id.name);
                name.setText(Html.fromHtml(obj.getString("place_name")));
                TextView address = view.findViewById(R.id.address);
                address.setText(obj.getString("address_name"));
                TextView tel = view.findViewById(R.id.tel);
                tel.setText(obj.getString("phone"));

                // 위도 경도 위치명 가지고 오기
                final String x = obj.getString("x");
                final String y = obj.getString("y");
                final String place_name = obj.getString("place_name");

                final String strTel = obj.getString("phone");
                final String strAddress = obj.getString("address_name");

                ImageView map = view.findViewById(R.id.map);
                map.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        Intent intent = new Intent(getContext(), MapsActivity.class);
                        intent.putExtra("x",x);
                        intent.putExtra("y",y);
                        intent.putExtra("title",place_name);
                        startActivity(intent);
                    }
                });

                // 즐겨찾기 이미지 클릭 시
                ImageView like = view.findViewById(R.id.like);
                like.setOnClickListener(new View.OnClickListener() {
                    @Override
                    public void onClick(View view) {
                        AlertDialog.Builder box = new AlertDialog.Builder(getContext());
                        box.setMessage("즐겨찾기에 등록하시겠습니까?");
                        box.setNegativeButton("아니오",null);
                        box.setPositiveButton("예", new DialogInterface.OnClickListener() {
                            @Override
                            public void onClick(DialogInterface dialogInterface, int i) {
                                String sql = "insert into tbllike(name, tel, address, x, y) values(";
                                sql += "'"+place_name+"',";
                                sql += "'"+strTel+"',";
                                sql += "'"+strAddress+"',";
                                sql += "'"+x+"',";
                                sql += "'"+y+"')";
                                db.execSQL(sql);
                                Toast.makeText(getContext(),"즐겨찾기에 등록되었습니다.", Toast.LENGTH_SHORT).show();
                            }
                        });
                        box.show();
                    }
                });

            }catch (Exception e){
                System.out.println("데이터 오류 : "+e.toString());
            }

            return view;
        }
    }
}





- src/main/res/menu/menu.xml

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto">
    <item
        android:id="@+id/like"
        android:title="즐겨찾기"
        android:icon="@drawable/ic_baseline_favorite_24"
        app:showAsAction="always"/>
</menu>



- src/main/java/com/example/ex05/MainActivity.java

.....
    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                DrawerLayout layout = findViewById(R.id.drawerLayout);
                LinearLayout view = findViewById(R.id.drawerView);
                if(layout.isDrawerOpen(view)){
                    layout.closeDrawer(view);
                }else{
                    layout.openDrawer(view);
                }
                break;
            case R.id.like:
                Intent intent = new Intent(this, LikeActivity.class);
                startActivity(intent);
                break;
        }
        return super.onOptionsItemSelected(item);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.menu, menu);
        return super.onCreateOptionsMenu(menu);
    }
}



- src/main/java/com/example/ex05/(new)LikeActivity.java

package com.example.ex05;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.CursorAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class LikeActivity extends AppCompatActivity {
    LikeDB likeDB;
    SQLiteDatabase db;
    Cursor cursor;
    ListView list;
    LikeAdapter likeAdapter;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.fragment_local);

        likeDB = new LikeDB(this);
        db=likeDB.getWritableDatabase();

        getSupportActionBar().setTitle("즐겨찾기");
        getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        cursor=db.rawQuery("select * from tbllike order by _id desc", null);
        likeAdapter=new LikeAdapter(this, cursor);
        list = findViewById(R.id.list);
        list.setAdapter(likeAdapter);
    }

    @Override
    public boolean onOptionsItemSelected(@NonNull MenuItem item) {
        switch (item.getItemId()){
            case android.R.id.home:
                finish();
        }
        return super.onOptionsItemSelected(item);
    }

    class LikeAdapter extends CursorAdapter{
        public LikeAdapter(Context context, Cursor c) {
            super(context, c);
        }

        @Override
        public View newView(Context context, Cursor cursor, ViewGroup parent) {
            return getLayoutInflater().inflate(R.layout.item_local, parent, false);
        }

        @Override
        public void bindView(View view, Context context, final Cursor cursor) {
            TextView name=view.findViewById(R.id.name);
            name.setText(cursor.getString(1));
            ImageView like=view.findViewById(R.id.like);
            like.setVisibility(View.INVISIBLE);
            TextView tel=view.findViewById(R.id.tel);
            tel.setText(cursor.getString(2));
            TextView address=view.findViewById(R.id.address);
            address.setText(cursor.getString(3));

            final String x = cursor.getString(4);
            final String y = cursor.getString(5);
            final String title = cursor.getString(1);
            ImageView map=view.findViewById(R.id.map);
            map.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    Intent intent=new Intent(LikeActivity.this, MapsActivity.class);
                    intent.putExtra("x", x);
                    intent.putExtra("y", y);
                    System.out.println(x+"/"+y);
                    intent.putExtra("title", title);
                    startActivity(intent);
                }
            });
        }
    }
}



완료





저작자표시

'ICIA 수업일지' 카테고리의 다른 글

2021.10.01 수업일지 (안드로이드 기초, MySQL, Web Server)  (0) 2021.10.01
2021.09.30 수업일지(안드로이드 개발 기초, Firebase)  (0) 2021.09.30
2021.09.28 수업일지(안드로이드 기초, SQLite)  (0) 2021.09.28
2021.09.27 수업일지(안드로이드 개발 기초, SQLite)  (0) 2021.09.27
2021.09.24 수업일지(안드로이드 개발 기초, SQLite)  (0) 2021.09.24

관련글

티스토리툴바
